Home >> Subaru >> 2020 >> Outback Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (Diagnostics) (2.5L) - Introduction >> General Description >> System Block Diagram

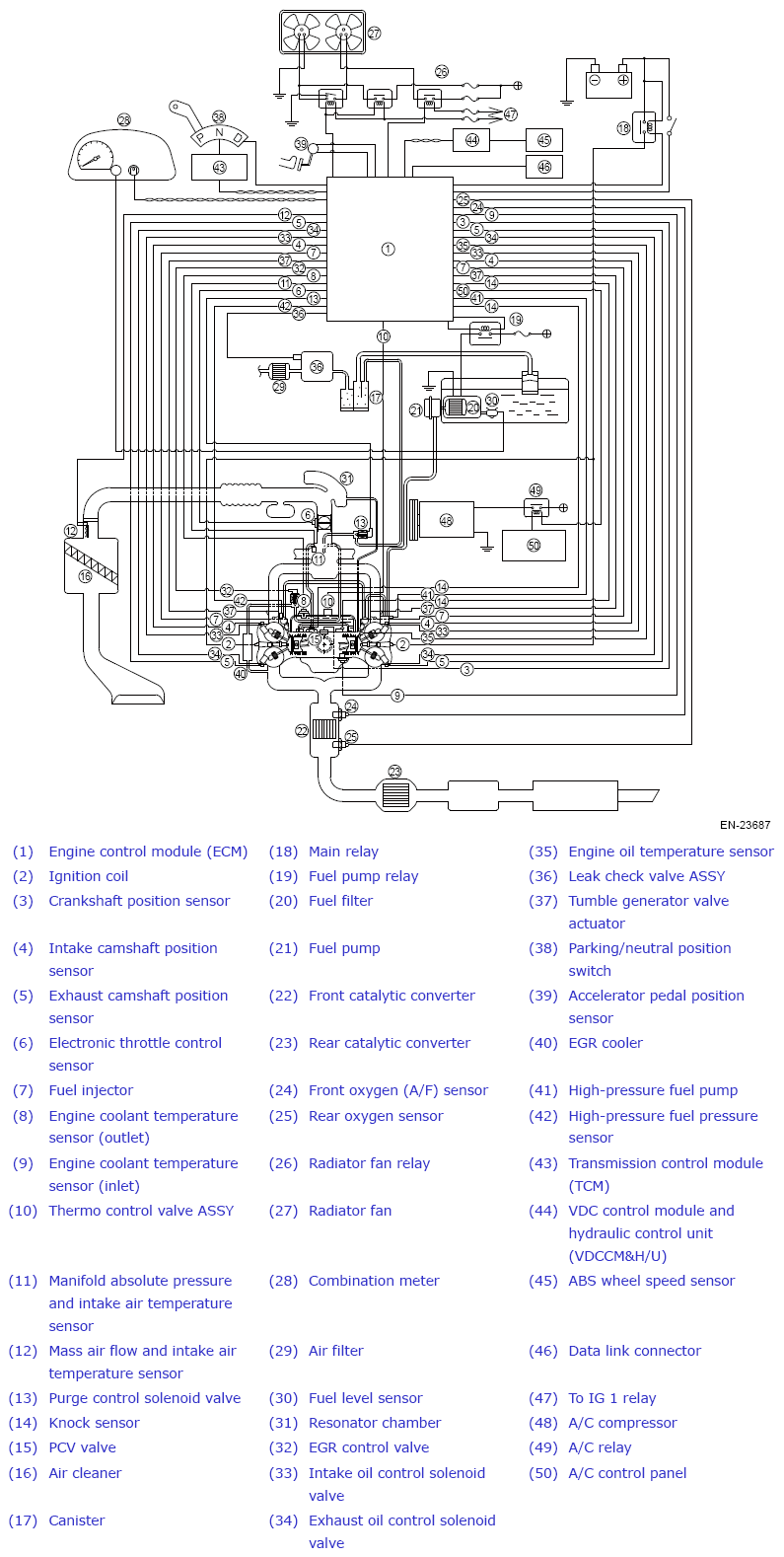

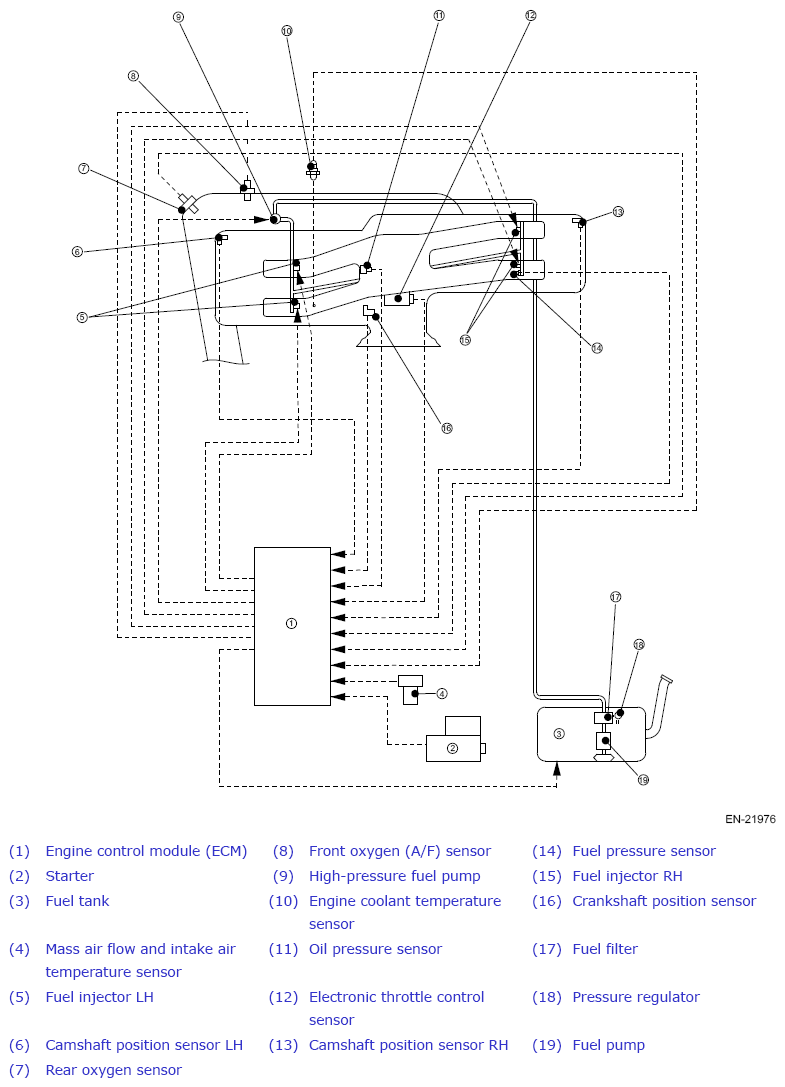

System Block Diagram

SK-9AE

G13626698Courtesy of SUBARU OF AMERICA, INC.
G13626699Courtesy of SUBARU OF AMERICA, INC.
