Entertainment System: Camera: Removal: Front

1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>Front Bumper>REMOVAL .
3. Remove the front view camera assembly.
   CAUTION: Do not drop or apply any impact to the front view camera assembly because it is a precision equipment.

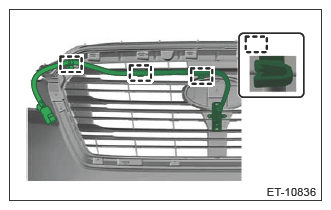

   1. Remove the cable clips.

      Courtesy of SUBARU OF AMERICA, INC.

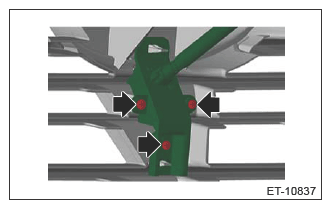

   2. Remove the screws and remove the front view camera assembly.

Courtesy of SUBARU OF AMERICA, INC.
