REINITIALIZATION Of Glass Roof Control Module

NOTE: This work is required when a deviation occurs between the position recognized by the glass roof control module and the actual position of the glass, resulting from removing/installing the motor assembly that has already been initialized and removing/installing the lid assembly front.

1. Turn the ignition switch to ON.
2. Push the sunroof switch to the OPEN side, and move the lid assembly front to the full open position.
3. Turn the sunroof switch to OFF once. Push the sunroof switch to the OPEN side again, and keep the condition for 10 seconds or more.
4. After 10 seconds, the lid assembly front moves to the fully open mechanical lock position, and then reverses and stops at the fully open position.
5. It stops at the fully open position and the reinitialization of the glass roof control module will be complete.

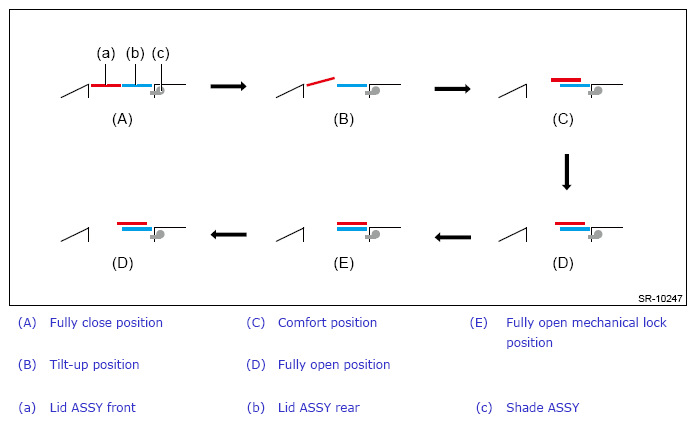

   NOTE: For the operation order of lid assembly front reinitialization, refer to the following figure.

Courtesy of SUBARU OF AMERICA, INC.
