REINITIALIZATION Of Shade Control Module

NOTE: This work is required when a deviation occurs between the position recognized by the shade control module and the actual position of the shade, resulting from removing/installing the motor assembly that has already been initialized and removing/installing the shade assembly.

1. Turn the ignition switch to ON.
2. Push the shade switch to the OPEN side, and move the shade assembly to the fully open position.
3. Turn the shade switch to OFF once. Push the shade switch to the OPEN side again, and keep the condition for 10 seconds or more.
4. After 10 seconds, the shade assembly moves to the fully open mechanical lock position, and then reverses and stops at the fully open position.
5. It stops at the fully open position and the reinitialization of the shade control module will be complete.

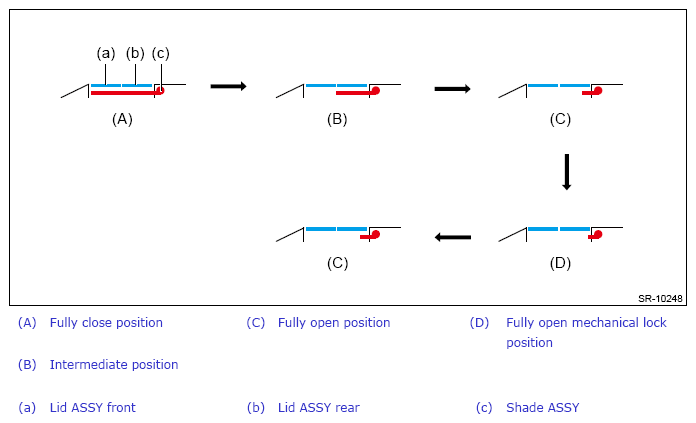

NOTE: For the operation order of shade assembly reinitialization, refer to the following figure.

Courtesy of SUBARU OF AMERICA, INC.
