Data Monitor: List

[Power Window (Driver)], [Power Window (Passenger)], [Power Window (Rear Right)] and [Power Window (Rear Left)]

Display	Contents	Standard	Note
Power supply voltage	Power supply voltage	0 - 20.95 V	-
Courtesy Switch	Courtesy switch status	Close Open	-
One's Seat Switch	Status of switch at passenger's own seat	OFF DOWN UP UP/DOWN AUTO AUTO DOWN AUTO UP UP/DOWN/AUTO	-
Remote switch	Remote switch status	OFF DOWN UP UP/DOWN AUTO AUTO DOWN AUTO UP UP/DOWN/AUTO	-
Window Lock Switch Signal	Window lock switch status	Unlock Lock	-
Remote Control Key Signal	Remote control key signal	OFF DOWN UP	-
Operation Enable Signal	Operation permission signal	OFF ON	-
Open Position Pulse Count	Full open position pulse count	-32767 - 32767 Edge	-
Current Position Pulse Count	Current position pulse count	-32767 - 32767 Edge	-
Motor Control Mode	Motor control status	Stop One's Seat Manual Down One's Seat Manual Up One's Seat Auto Down One's Seat Auto Up Remote Manual Down Remote Manual Up Remote Auto Down Remote Auto Up Remote Key Interlocking Down Remote Key Interlocking Up Reversal Down Active Test Down Active Test Up	-
ECU Control Mode	ECM control status	Uninitialized 1 Undefined Uninitialized 2 Initialized	-
With/Without Forget Closing Window	History wherein window position is within a sensing area when key off timer is prohibited	no support support	-
Record Forget Closing Window Latest	Number of times key off timer has been prohibited since key off timer prohibition was detected most recently when the window's position is not in the full close state	0 - 255 Time	-
Record Forget Closing Window 1	Number of times key off timer has been prohibited since key off timer prohibition was detected second last time when the window's position is not in the full close state	0 - 255 Time	-
Record Forget Closing Window 2	Number of times key off timer has been prohibited since key off timer prohibition was detected the third last time when the window's position is not in the full close state	0 - 255 Time	-
Record Forget Closing Window 3	Number of times key off timer has been prohibited since key off timer prohibition was detected the fourth last time when the window's position is not in the full close state	0 - 255 Time	-
Window Position Status	Window position information	Indefinite Fully Open Fully Closed Other	-
Reason Down Glass Latest	Latest DOWN factor information record (Auto, Reverse, etc.)	Default One's Seat Manual Down One's Seat Auto Down Remote Manual Down Remote Auto Down Remote Key Interlocking Down Reversal Down Active Test Down	-
Reason Down Glass 1	Second latest DOWN factor information record (Auto, Reverse, etc.)	Default One's Seat Manual Down One's Seat Auto Down Remote Manual Down Remote Auto Down Remote Key Interlocking Down Reversal Down Active Test Down	-
Position when Reversed Glass Latest	Window position of the latest reverse operation	No Reverse Area 5 Area 4 Area 3 Area 2 Area 1	Note 1
Reverse Parameter Mask Latest	Reverse parameters 1 of the latest reverse operation	First Motion Mask within Two of the Interval First Motion Mask without Two of the Interval	-
Reverse Parameter Speed Latest	Reverse parameters 2 of the latest reverse operation	Less than Vehicle Speed 5km/h More than Vehicle Speed 5km/h	-
Position when Reversed Glass 1	Window position of the second latest reverse operation	No Reverse Area 5 Area 4 Area 3 Area 2 Area 1	Note 1
Reverse Parameter Mask 1	Reverse parameters 1 of the second latest reverse operation	First Motion Mask within Two of the Interval First Motion Mask without Two of the Interval	-
Reverse Parameter Speed 1	Reverse parameters 2 of the second latest reverse operation	Less than Vehicle Speed 5km/h More than Vehicle Speed 5km/h	-
Position when Reversed Glass 2	Window position of the second latest reverse operation	No Reverse Area 5 Area 4 Area 3 Area 2 Area 1	Note 1
Reverse Parameter Mask 2	Reverse parameters 1 of the second latest reverse operation	First Motion Mask within Two of the Interval First Motion Mask without Two of the Interval	-
Reverse Parameter Speed 2	Reverse parameters 2 of the second latest reverse operation	Less than Vehicle Speed 5km/h More than Vehicle Speed 5km/h	-
Position when Reversed Glass 3	Window position of the second latest reverse operation	No Reverse Area 5 Area 4 Area 3 Area 2 Area 1	Note 1
Reverse Parameter Mask 3	Reverse parameters 1 of the second latest reverse operation	First Motion Mask within Two of the Interval First Motion Mask without Two of the Interval	-
Reverse Parameter Speed 3	Reverse parameters 2 of the second latest reverse operation	Less than Vehicle Speed 5km/h More than Vehicle Speed 5km/h	-
Position when Stop Glass Latest	Window position of the latest window stop operation due to drawing foreign matters	Not Involve Area 5 Area 4 Area 3 Area 2 Area 1	Note 2
Stop Parameter Mask Latest	Parameters 1 of the latest window stop operation due to drawing foreign matters	First Motion Mask within Two of the Interval First Motion Mask without Two of the Interval	-
Stop Parameter Speed Latest	Parameters 2 of the latest window stop operation due to drawing foreign matters	Less than Vehicle Speed 5km/h More than Vehicle Speed 5km/h	-
Position when Stop Glass 1	Window position of the second latest window stop operation due to drawing foreign matters	Not Involve Area 5 Area 4 Area 3 Area 2 Area 1	Note 2
Stop Parameter Mask 1	Parameters 1 of the second latest window stop operation due to drawing foreign matters	First Motion Mask within Two of the Interval First Motion Mask without Two of the Interval	-
Stop Parameter Speed 1	Parameters 2 of the second latest window stop operation due to drawing foreign matters	Less than Vehicle Speed 5km/h More than Vehicle Speed 5km/h	-
Position when Stop Glass 2	Window position of the third latest window stop operation due to drawing foreign matters	Not Involve Area 5 Area 4 Area 3 Area 2 Area 1	Note 2
Stop Parameter Mask 2	Parameters 1 of the third latest window stop operation due to drawing foreign matters	First Motion Mask within Two of the Interval First Motion Mask without Two of the Interval	-
Stop Parameter Speed 2	Parameters 2 of the third latest window stop operation due to drawing foreign matters	Less than Vehicle Speed 5km/h More than Vehicle Speed 5km/h	-
Position when Stop Glass 3	Window position of the fourth latest window stop operation due to drawing foreign matters	Not Involve Area 5 Area 4 Area 3 Area 2 Area 1	Note 2
Stop Parameter Mask 3	Parameters 1 of the fourth latest window stop operation due to drawing foreign matters	First Motion Mask within Two of the Interval First Motion Mask without Two of the Interval	-
Stop Parameter Speed 3	Parameters 3 of the third latest window stop operation due to drawing foreign matters	Less than Vehicle Speed 5km/h More than Vehicle Speed 5km/h	-

NOTE:

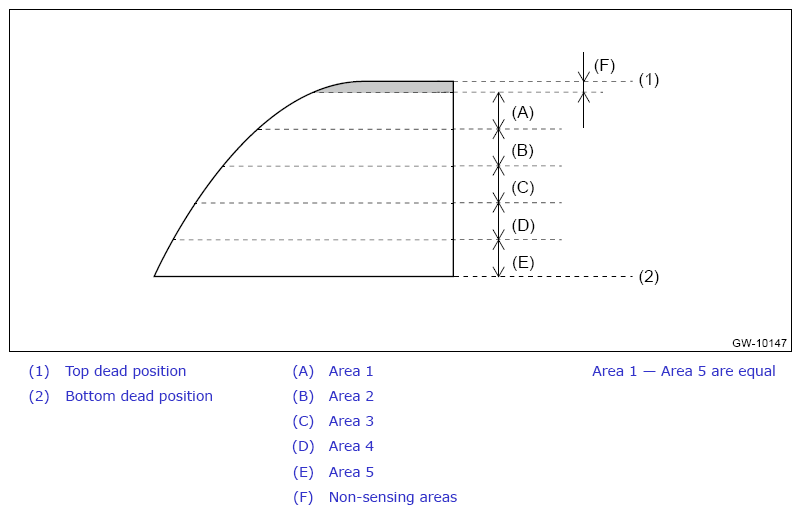

Definition of window position when it reverses

Courtesy of SUBARU OF AMERICA, INC.

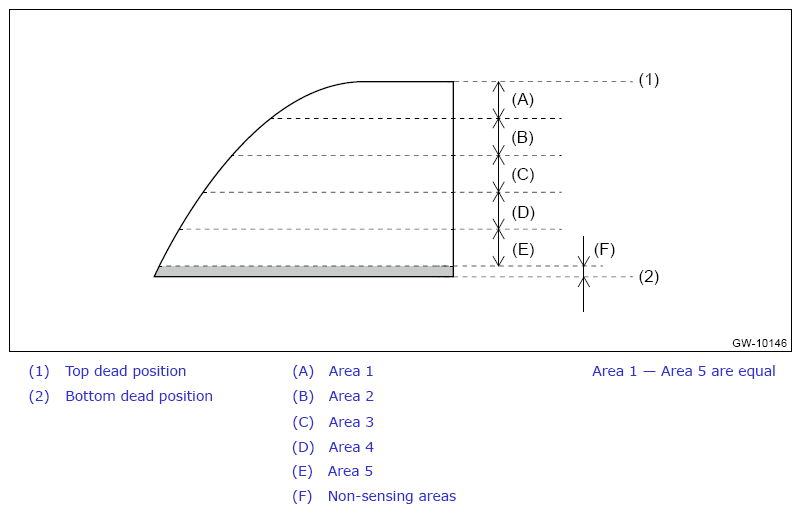

Definition of window position when it stops due to drawing foreign matters

Courtesy of SUBARU OF AMERICA, INC.

Power Window (Switch)

Display	Contents	Standard	Note
Drivers seat AUTO SW state	Driver's side AUTO SW status	ON OFF	-
Drivers seat AUTO SW Present ON trouble	Driver's side AUTO SW current ON malfunction	Detect Not Detect	-
Passenger seat AUTO SW state	Passenger's side AUTO SW status	ON OFF	-
Passenger seat AUTO SW Present ON trouble	Passenger's side AUTO SW current ON malfunction	Detect Not Detect	-
Passenger seat MANUAL UP SW state	Passenger's side MANUAL UP SW status	ON OFF	-
Passenger seat MANUAL UP SW Present ON trouble	Passenger's side MANUAL UP SW current ON malfunction	Detect Not Detect	-
Passenger seat MANUAL DOWN SW state	Passenger's side MANUAL DOWN SW status	ON OFF	-
Passenger seat MANUAL DOWN SW Present ON trouble	Passenger's side MANUAL DOWN SW status	Detect Not Detect	-
Right 2nd Seat Manual Up SW State	Rear right seat MANUAL UP SW status	ON OFF	-
Right 2nd Seat Manual Up SW Present ON Trouble	Rear right seat MANUAL UP SW status	Detect Not Detect	-
Right 2nd Seat Manual Down SW State	Rear right seat MANUAL DOWN SW status	ON OFF	-
Right 2nd Seat Manual Down SW Present ON Trouble	Rear right seat MANUAL DOWN SW status	Detect Not Detect	-
Left 2nd Seat Manual Up SW State	Rear left seat MANUAL UP SW status	ON OFF	-
Left 2nd Seat Manual Up SW Present ON Trouble	Rear left seat MANUAL UP SW status	Detect Not Detect	-
Left 2nd Seat Manual Down SW State	Rear left seat MANUAL DOWN SW status	ON OFF	-
Left 2nd Seat Manual Down SW Present ON Trouble	Rear left seat MANUAL DOWN SW status	Detect Not Detect	-
Window Lock Switch State	Window lock switch status	ON OFF	-
