VDC OFF Switch: Inspection

Measure the resistance between the VDC OFF switch terminals.

Preparation tool:

Circuit tester

Courtesy of SUBARU OF AMERICA, INC.

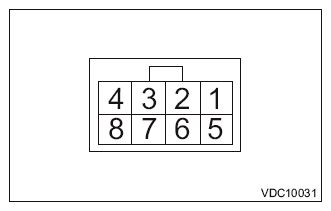

Terminal No.	Inspection conditions	Standard
6 - 8	Switch OFF	1 MΩ or more
6 - 8	Switch ON	Less than 1 Ω

Apply battery voltage between the connector terminals to check lighting condition of illumination inside the switch.

CAUTION: When applying battery voltage, do not mix up the positive (+) side and the negative (-) side.
Incorrect polarity connection may cause LED damage inside the switch.

Terminal No.	Inspection conditions	Specification
1 (+) - 4 (-)	Apply battery voltage	Light ON

Replace the VDC OFF switch if the inspection result is not within the standard value.
