Scavenge Pump

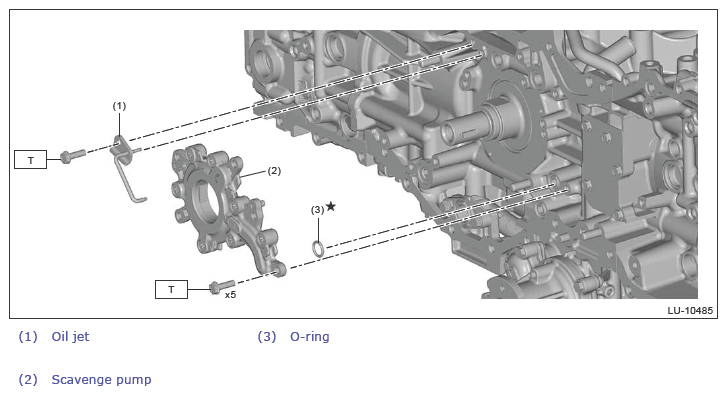

Fig 1: Exploded View Of Scavenge Pump Components

G13862963

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6.4 (0.7, 4.7)
