Front Exhaust Pipe: Assembly

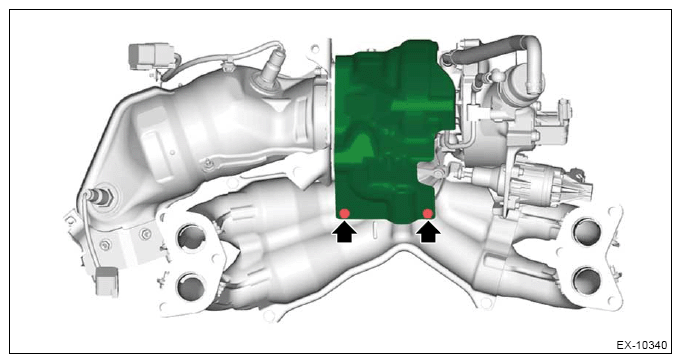

1. Install each exhaust cover.

   Tightening torque:

   7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

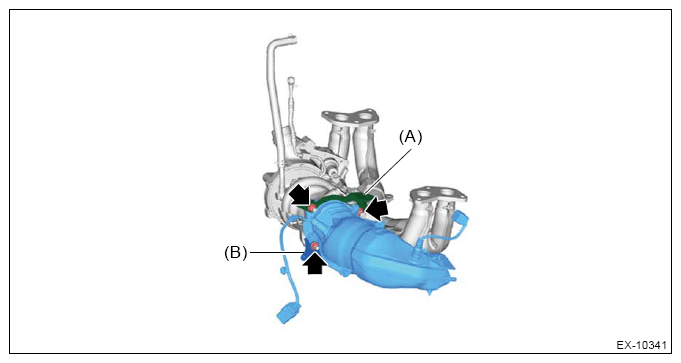

2. Using a new gasket, connect turbocharger and front exhaust pipe together with the turbocharger stay (A) and exhaust stay (B).
   CAUTION: Be sure to use a new self-locking nut.

   Tightening torque:

   42.5 N.m (4.3 kgf-m, 31.3 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

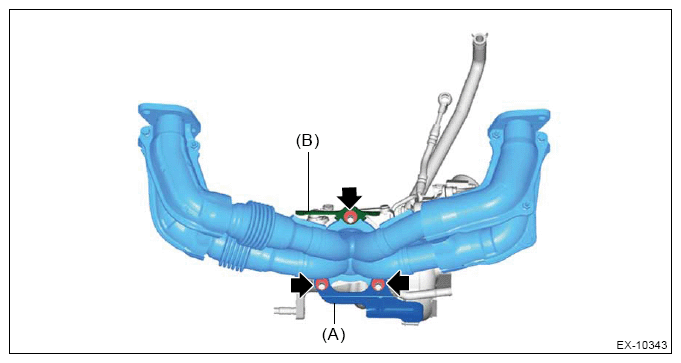

3. Install the exhaust cover.

   Tightening torque:

   7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

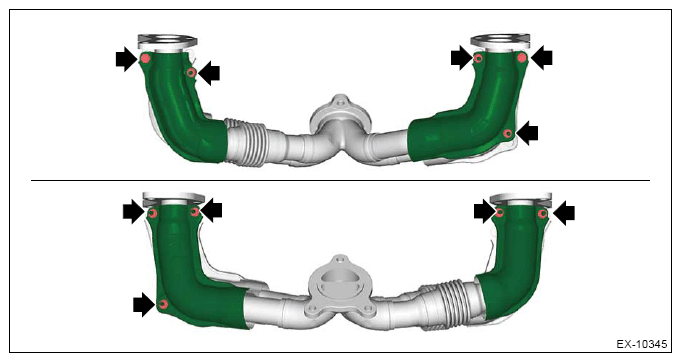

4. Using a new gasket, connect turbocharger and center exhaust pipe (front) together with the exhaust stay (A) and turbocharger stay (B).
   CAUTION: Be sure to use a new self-locking nut.

   Tightening torque:

   42.5 N.m (4.3 kgf-m, 31.3 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

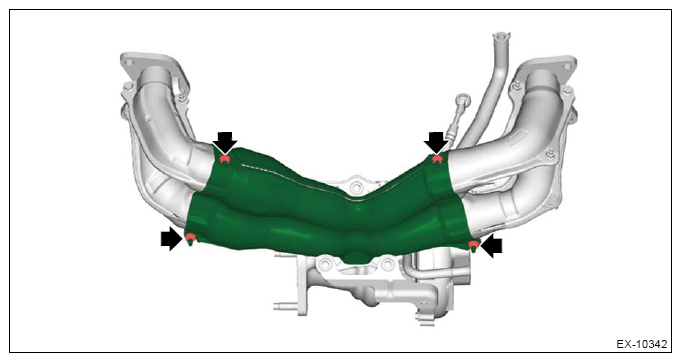

5. Install the exhaust cover.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
