Rear Suspension System: General Description: Specification
| Suspension height (Tolerance: +12 mm-24 mm (+0.47 in-0.94 in )) | mm (in) | -62 (-2.44) |
| Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less) | -0°30' | |
| Toe-in | mm (in) | IN 3±3 (IN 0.12±0.12) |
| Toe angle (sum of both wheels): IN 0°14'±14' | ||
| Thrust angle (tolerance: 0°00'±30') | 0°00' | |
NOTE:
- Adjust with the value less than the inspection value, taking aging variation into consideration .
- Front toe-in, rear toe-in and front camber can be adjusted. Adjust if the value of toe-in or camber exceeds the tolerance range of the specification chart .
- Other items except for front toe-in, rear toe-in and front camber that are described in the specification chart cannot be adjusted .
- If other items exceed the tolerance range of the specification chart, check the suspension parts and connections for deformation. If defective, replace them with new parts .

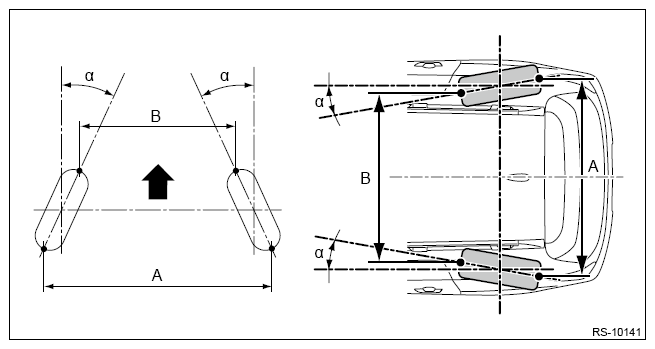

A - B = Positive: Toe-in, Negative: Toe-out
α= Individual toe angles
