Trailing Link: Removal

  1. Lift up the vehicle, and then remove the rear wheels.
  2. Disconnect the adapter cord EPB.
    G13199372Courtesy of SUBARU OF AMERICA, INC.

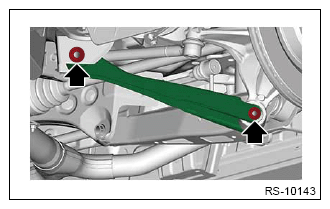

  3. Remove the bolts and nuts, and then remove the trailing link assembly rear.
G13199373Courtesy of SUBARU OF AMERICA, INC.
