Converter Case: Disassembly

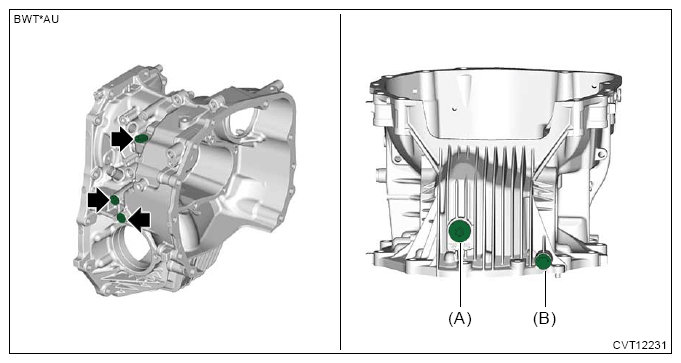

  1. Remove the drain plug (A) using TORX® bit T70.
  2. Remove the overflow plug (B).
  3. Remove all plugs.
    G13622392Courtesy of SUBARU OF AMERICA, INC.

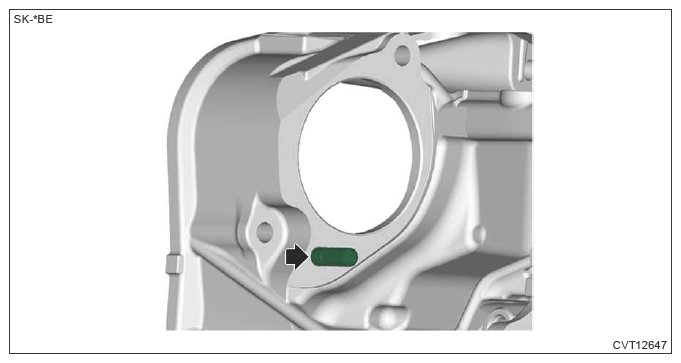

  4. Remove the stud bolt using TORX® socket E10.
    G13592394Courtesy of SUBARU OF AMERICA, INC.
