Drive Sprocket

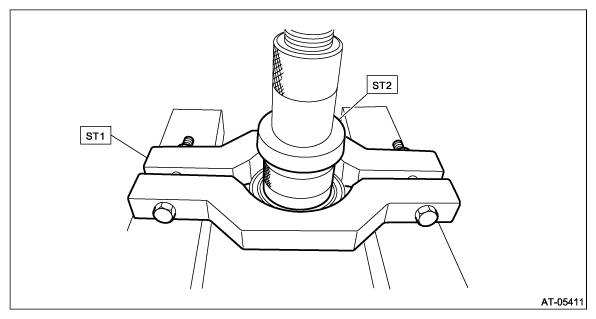

Remove the ball bearing using the ST1 and ST2.
Preparation tool:

ST1: REMOVER (498077600)

ST2: INSTALLER (399513600)

Courtesy of SUBARU OF AMERICA, INC.
