Parking Pawl: Installation

  1. Shift the shifter arm to "N" range.
  2. Install the parking pawl shaft, return spring and parking pawl.

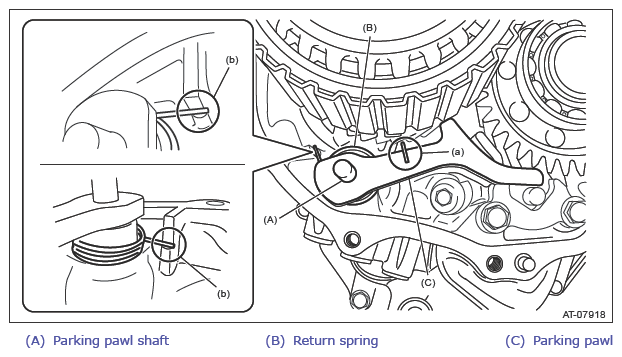

    NOTE: Make sure that the end of return spring sticks out of parking pawl as shown in (a).
    Make sure that the other end contacts the rib of intermediate case as shown in (b).
    G13863972Courtesy of SUBARU OF AMERICA, INC.
  3. Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Extension Case>INSTALLATION .
  4. Install the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Assembly>INSTALLATION .
