Rear Drive Shaft: Disassembly

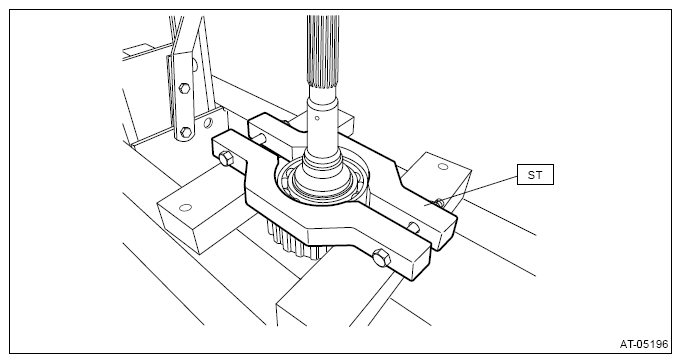

Remove the ball bearing using the ST and a press.
Preparation tool:

ST: REMOVER (498077600)

Courtesy of SUBARU OF AMERICA, INC.
