Reduction Driven Gear: Adjustment

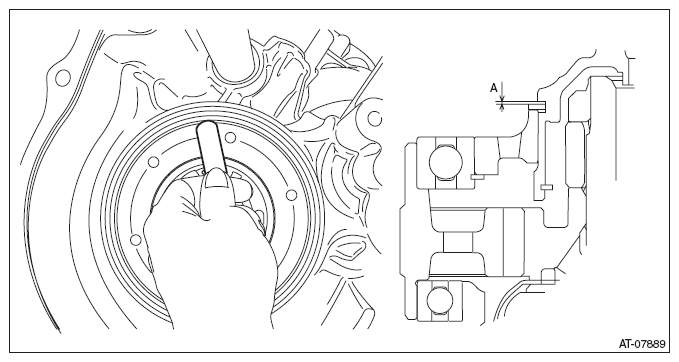

Measure clearance "A" between snap ring and transmission case.
Specification:

0.05 - 0.25 mm (0.002 - 0.01 in)

Courtesy of SUBARU OF AMERICA, INC.
If clearance "A" is out of standard, select the snap ring within standard.
