Transfer Clutch: Removal

  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Assembly>REMOVAL .
  2. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Extension Case>REMOVAL .
  3. Remove the rear drive shaft. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Rear Drive Shaft>REMOVAL .
  4. Remove the thrust bearing and needle bearing.

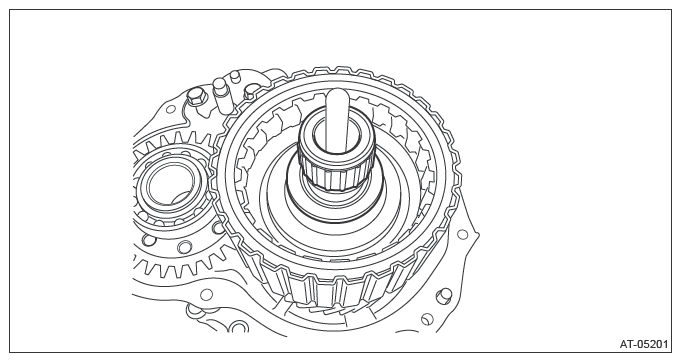

    G13863947Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the transfer clutch.

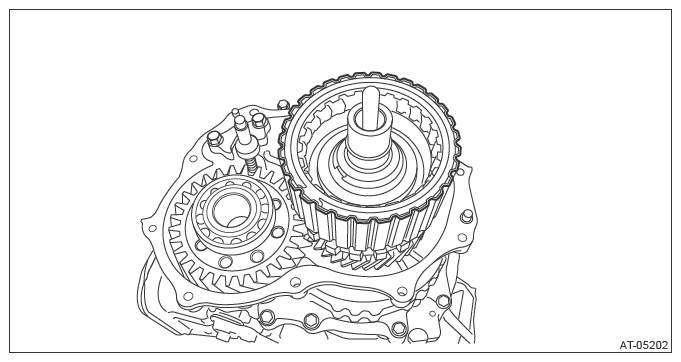

    G13200132Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the seal rings.

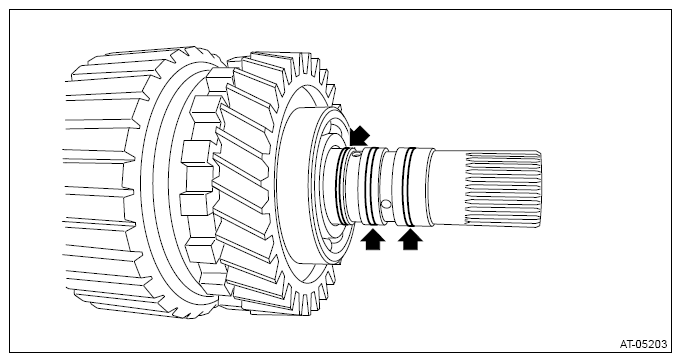

    G13200133Courtesy of SUBARU OF AMERICA, INC.
