Transmission Control Module (TCM): Removal
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

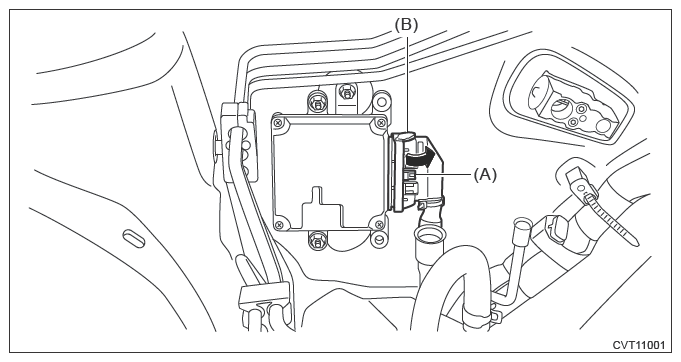

- Move the lock lever (B) in the arrow direction while pressing the lock button (A), and disconnect the connector.

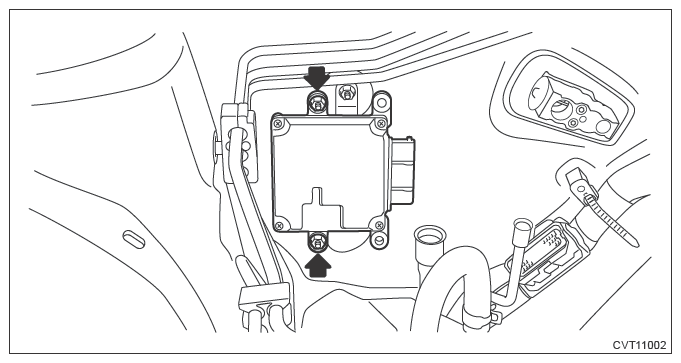

- Remove the TCM.
