Data Communication Module

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the grille ventilation assembly center. Ref. to AIR CONDITIONER>Air Vent Grille>REMOVAL>CENTER GRILLE ASSEMBLY .
  3. Remove the switch assembly hazard. Ref. to LIGHTING SYSTEM>Hazard Switch>REMOVAL .
  4. Remove the audio assembly or navigation assembly. Ref. to ENTERTAINMENT & MONITORING>Audio>REMOVAL .
  5. Remove the backup unit. Ref. to SECURITY AND LOCKS>Backup Unit>REMOVAL .
  6. Remove the data communication module.
    1. Disconnect the cable connected to the audio assembly.

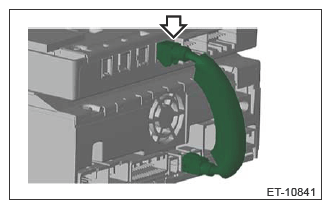

      G13865732Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the screws and remove the data communication module.
CAUTION: Do not drop or apply any impact to the data communication module.

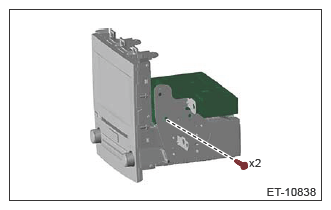

G13865733Courtesy of SUBARU OF AMERICA, INC.
NOTE: Remove the screws on LH side in the same procedure as on the RH side.
