Data Communication Module

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Remove the grille assembly - CTR ventilation. Ref. to AIR CONDITIONER (EXCEPT FOR HEV)>AIR VENT GRILLE>REMOVAL>CENTER GRILLE ASSEMBLY .
  3. Remove the audio assembly or navigation assembly. Ref. to ENTERTAINMENT & MONITORING>AUDIO>REMOVAL .
  4. Remove the data communication module.
    1. Disconnect the cable connected to the audio assembly.
      G13201888Courtesy of SUBARU OF AMERICA, INC.

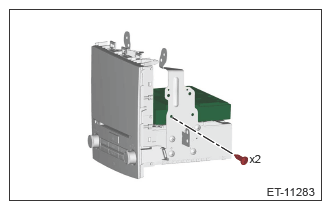

    2. Remove the screws and remove the data communication module.
      CAUTION: Do not drop or apply any impact to the data communication module.
      G13606403Courtesy of SUBARU OF AMERICA, INC.
      NOTE: Remove the screws on LH side in the same procedure as on the RH side.
