System Block Diagram

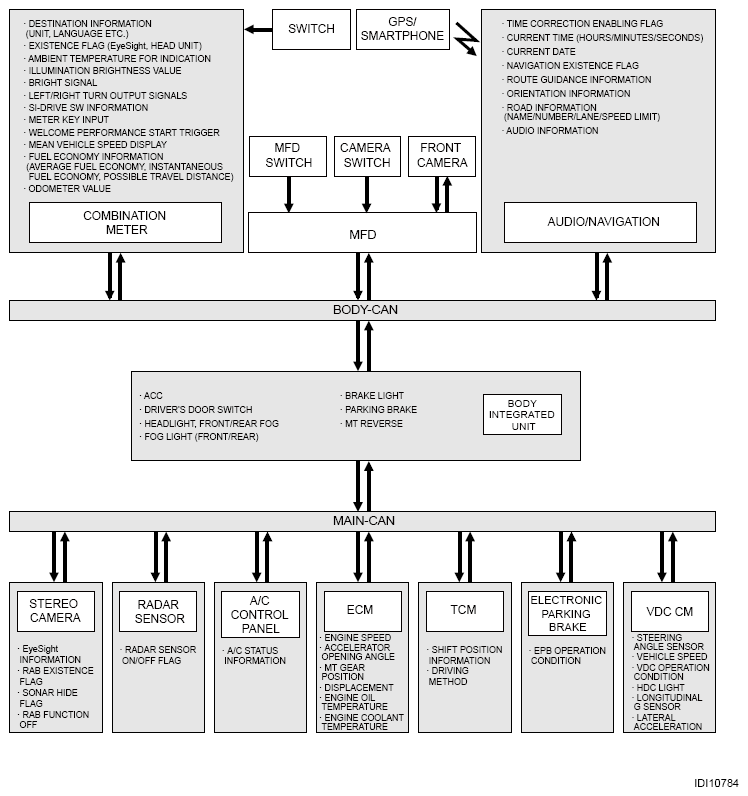

Except for hybrid model

G13944351

Courtesy of SUBARU OF AMERICA, INC.

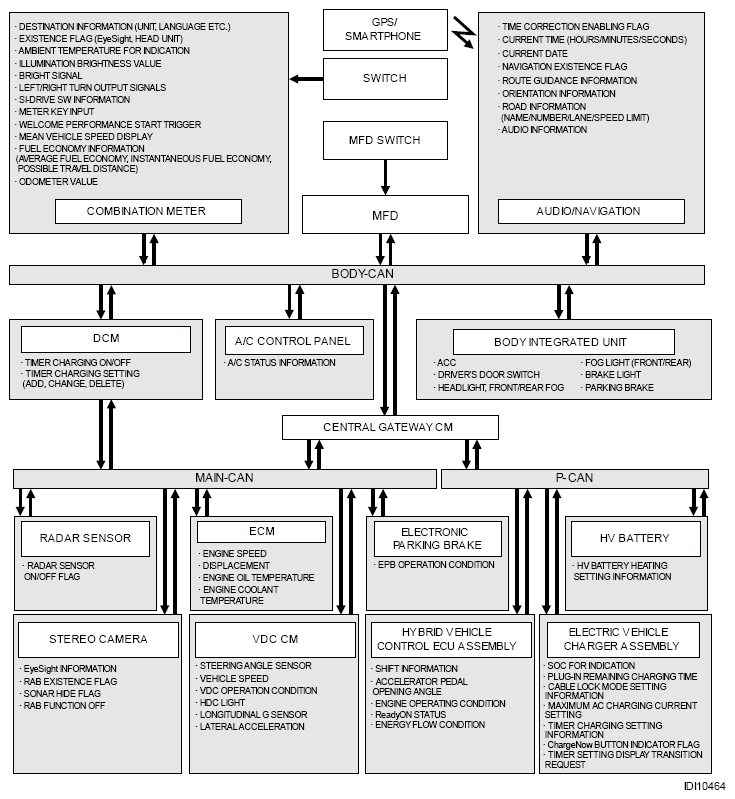

Hybrid model

G13246336

Courtesy of SUBARU OF AMERICA, INC.
