Oil Pan

2.0 L gasoline engine model

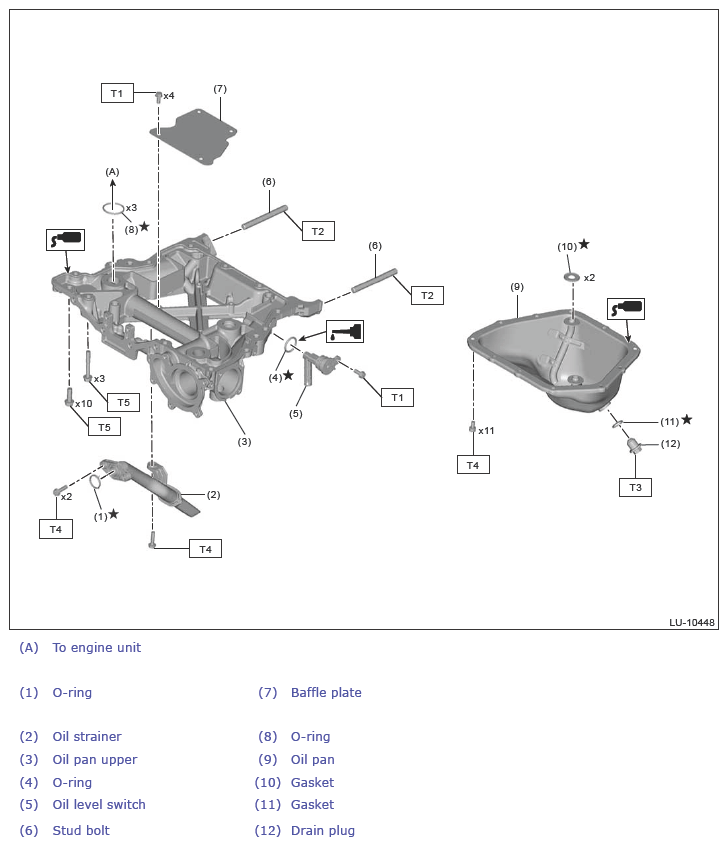

Fig 1: Oil Pan Components Location (2.0 L Gasoline Engine Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 6.4 (0.7, 4.7)

T3: 10 (1.0, 7.4)

T4: 41.7 (4.3, 30.8)

T5: Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PAN>INSTALLATION>OIL PAN .

T6: Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PAN>INSTALLATION>OIL PAN UPPER .
2.5 L model

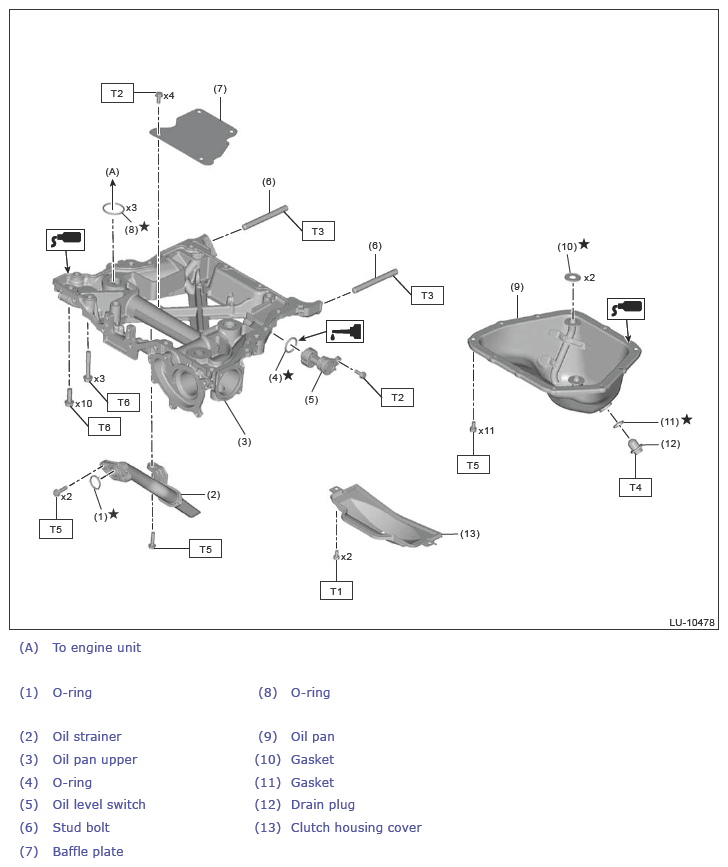

Fig 2: Oil Pan Components Location (2.5 L Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 10 (1.0, 7.4)

T3: 41.7 (4.3, 30.8)

T4: Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PAN>INSTALLATION>OIL PAN .

T5: Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PAN>INSTALLATION>OIL PAN UPPER .
Hybrid model

Fig 3: Oil Pan Components Location (Hybrid Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.6 (0.6, 4.1)

T2: 6.4 (0.7, 4.7)

T3: 10 (1.0, 7.4)

T4: 41.7 (4.3, 30.8)

T5: Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PAN>INSTALLATION>OIL PAN .

T6: Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PAN>INSTALLATION>OIL PAN UPPER .
