Components With Torque Specifications

• 2.0 L gasoline engine model

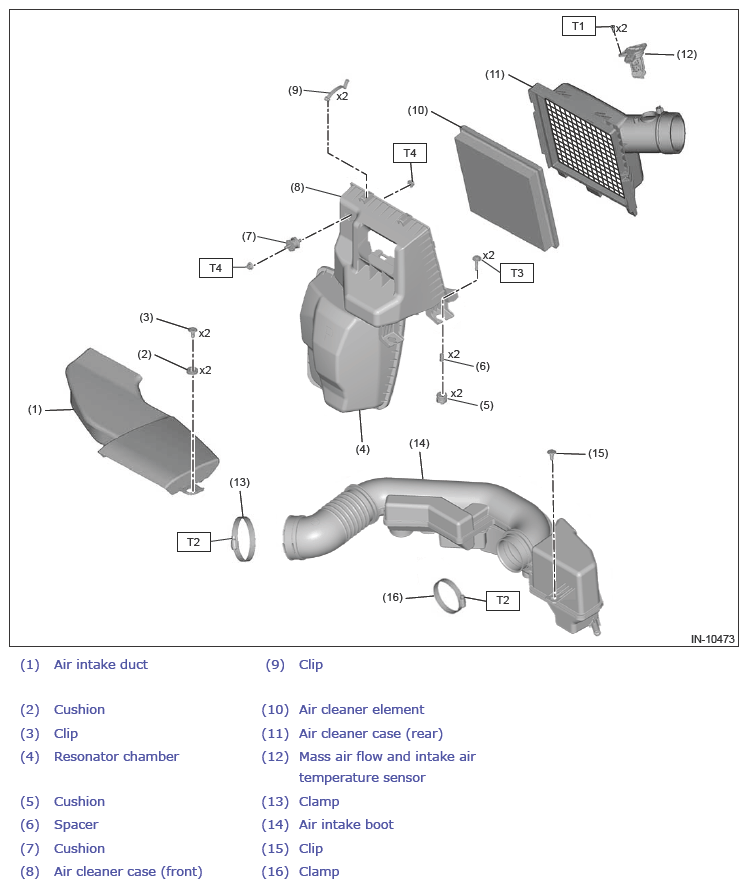

  Fig 1: Air Intake Components (2.0 L Gasoline Engine Model)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 1 (0.1, 0.7)

  T2: 3 (0.3, 2.2)

  T3: 6 (0.6, 4.4)

  T4: 7.5 (0.8, 5.5)

• 2.5 L model

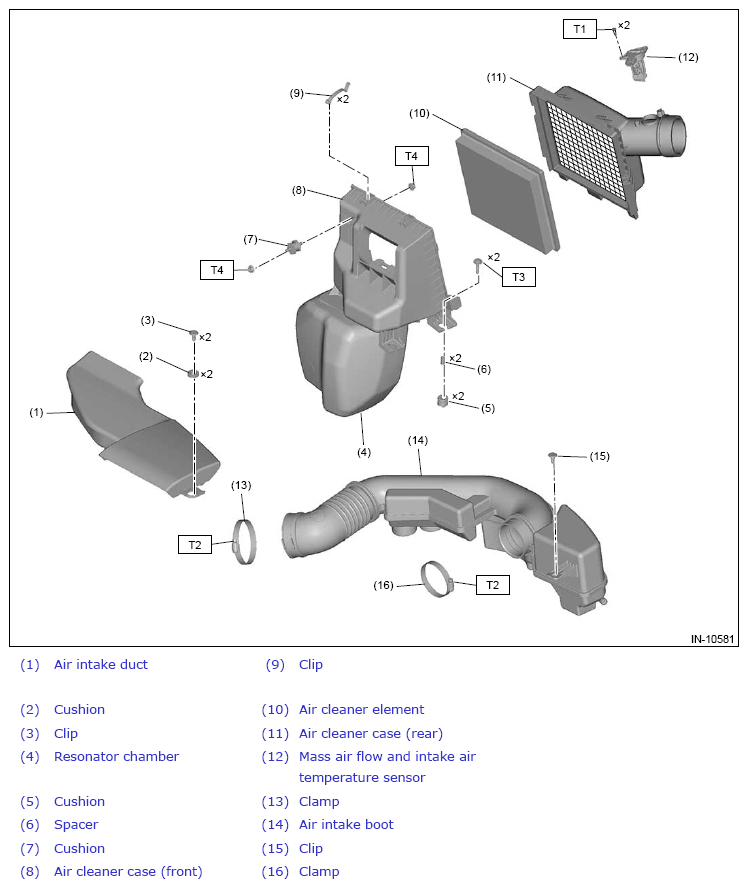

  Fig 2: Air Intake Components (2.5 L Model)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 1 (0.1, 0.7)

  T2: 3 (0.3, 2.2)

  T3: 6 (0.6, 4.4)

  T4: 7.5 (0.8, 5.5)

• Hybrid model

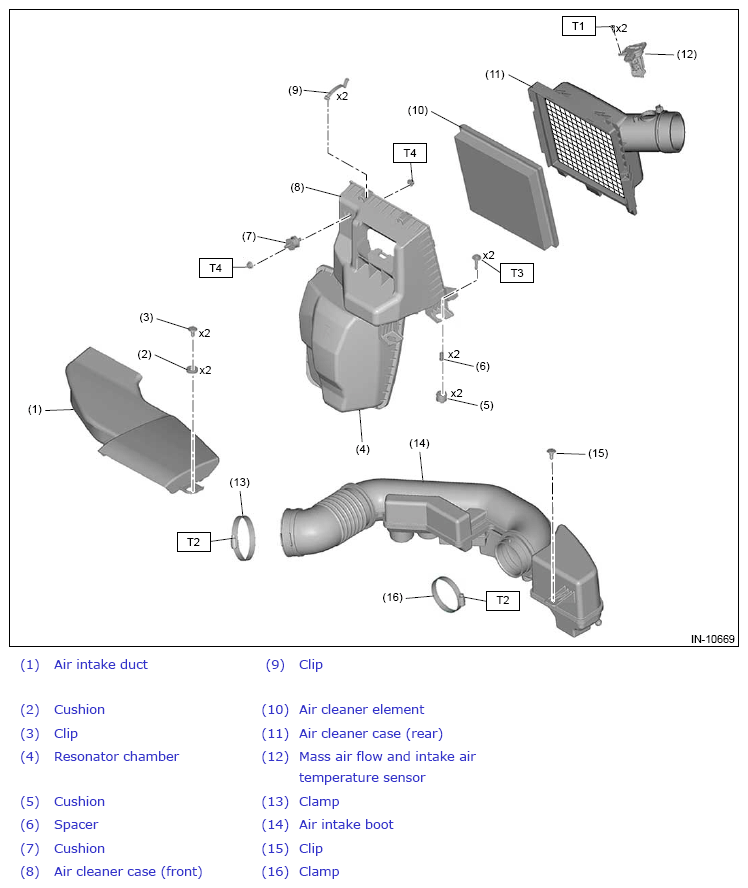

Fig 3: Air Intake Components (Hybrid Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1 (0.1, 0.7)

T2: 3 (0.3, 2.2)

T3: 6 (0.6, 4.4)

T4: 7.5 (0.8, 5.5)
