Stay Assembly - Front Hood

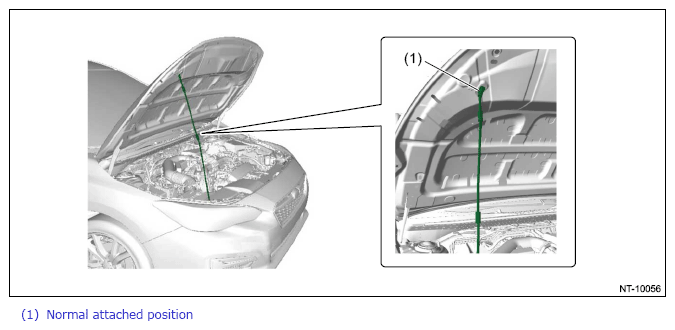

  1. Always attach the stay to the normal position when performing works such as inspections and general maintenance.
    CAUTION:
    • During the inspection and general maintenance, always be sure to turn the ignition switch to OFF.
    • At the inspection and general maintenance, do not detach the stay.
    G13875141Courtesy of SUBARU OF AMERICA, INC.

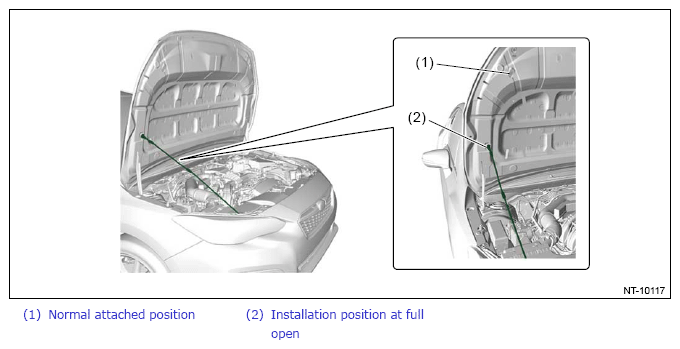

  2. When wider front hood opening is necessary, set the stay mounting position (hood side) to the lower position (hinge COMPL - front hood section) as shown in the figure.
    G13875142Courtesy of SUBARU OF AMERICA, INC.
