CROSSTREK Model
CAUTION:
For parts which are not reusable, always use new parts.
- Before installation, inspect the following items and replace any faulty part with a new one.
- Check the front arm assembly for damage or cracks, and replace if defective.
- Visually check the bushing for abnormal cracks, fatigue or damage.
- Visually check the boot on the ball joint for damage.
- Using new nuts and flange bolts, temporarily tighten the front arm assembly to the crossmember COMPL.
- Using new nuts, temporarily tighten the bushing rear - front arm connecting area of the front arm assembly to the body side together with the front arm rear plate.
- Install the two bolts for front arm rear plate.
Tightening torque:
150 N.m (15.3 kgf-m, 110.6 ft-lb)
- Install the front arm assembly to the front axle housing.CAUTION:
- Be careful not to damage the boot of the joint.

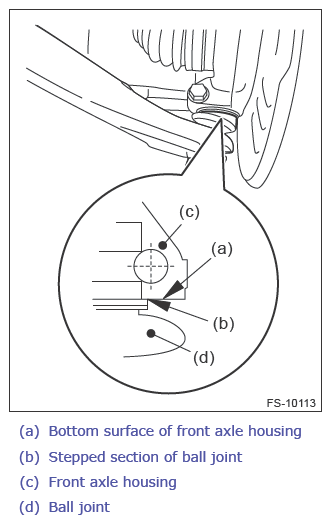

- Before tightening, make sure the lower side of front axle housing and stepped section of ball joint are in contact.
Tightening torque:
50 N.m (5.1 kgf-m, 36.9 ft-lb)
- Install the crossmember support - rear.
Tightening torque:
70 N.m (7.1 kgf-m, 51.6 ft-lb)
- Install the under cover - front.
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Install the front wheels.
Tightening torque:
120 N.m (12.2 kgf-m, 88.5 ft-lb)
- Unload the vehicle from the lift, confirm that the wheels are in full contact with the ground and the vehicle is at curb weight, and tighten the bolt which secures the front arm assembly to the crossmember COMPL and the nut which secures the assembly to the body side.
Tightening torque:
Refer to "COMPONENT" of "General Description" for the tightening torque. Ref. to FRONT SUSPENSION>GENERAL DESCRIPTION>COMPONENT>FRONT SUSPENSION .
- Inspect the wheel alignment and adjust if necessary.
- Inspection: Ref. to FRONT SUSPENSION>WHEEL ALIGNMENT>INSPECTION .
- Adjustment: Ref. to FRONT SUSPENSION>WHEEL ALIGNMENT>ADJUSTMENT .
CAUTION: When the wheel alignment has been adjusted, perform the following adjustment.- Lane keep assist learning value clear (except for hybrid model (model with EyeSight)): Ref. to EYESIGHT (DIAGNOSTICS) (EXCEPT FOR HEV)>CLEAR ACTIVE LANE KEEP SYSTEM LEARNING VALUE>OPERATION .
- Lane keep assist learning value clear (hybrid model (model with EyeSight)): Ref. to EYESIGHT (DIAGNOSTICS) (HEV)>CLEAR ACTIVE LANE KEEP SYSTEM LEARNING VALUE>OPERATION .
- VDC sensor midpoint setting mode: Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM & H/U)>ADJUSTMENT .
- Perform reinitialization of the auto headlight beam leveler system. (Model with vehicle height sensor) Ref. to LIGHTING SYSTEM>AUTO HEADLIGHT BEAM LEVELER SYSTEM>PROCEDURE .
