Front Strut

• Impreza model

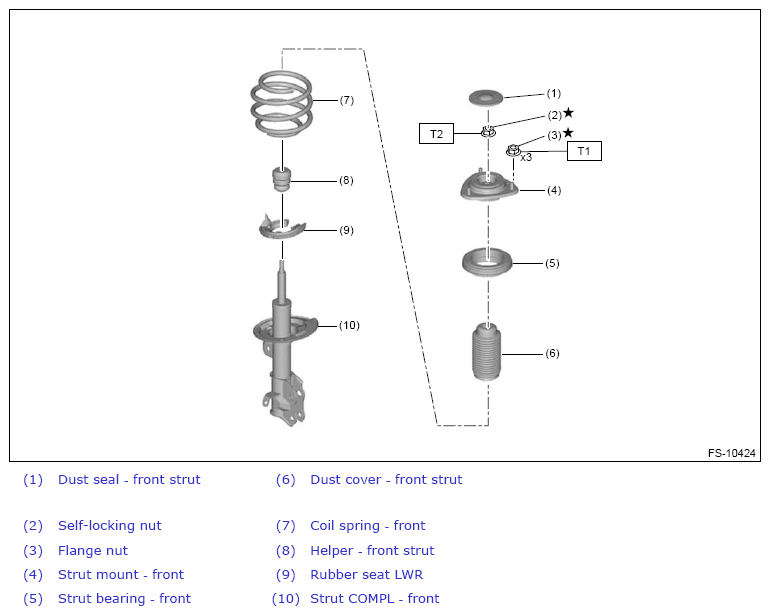

  Fig 1: Front Strut Components - Impreza Model

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 32 (3.3, 23.6)

  T2: 55 (5.6, 40.6)

• Crosstrek model

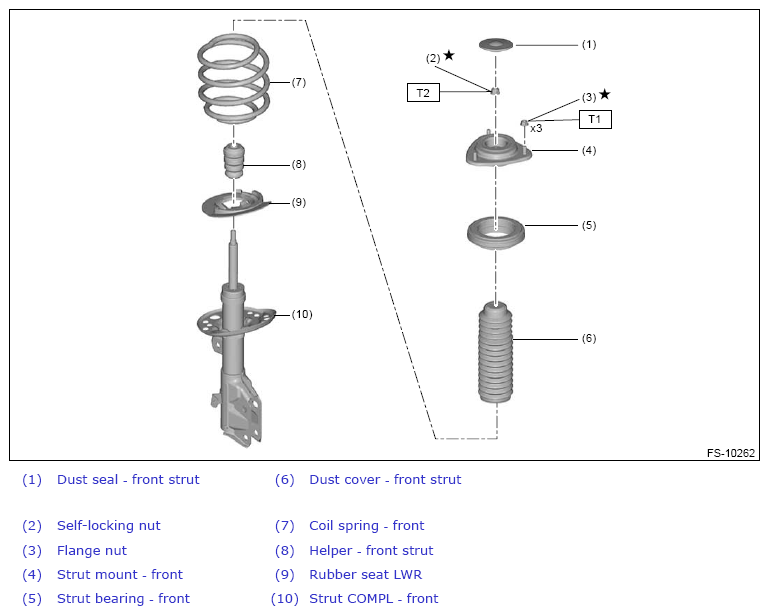

Fig 2: Front Strut Components - Crosstrek Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 32 (3.3, 23.6)

T2: 55 (5.6, 40.6)
