5MT Gear Shift Lever

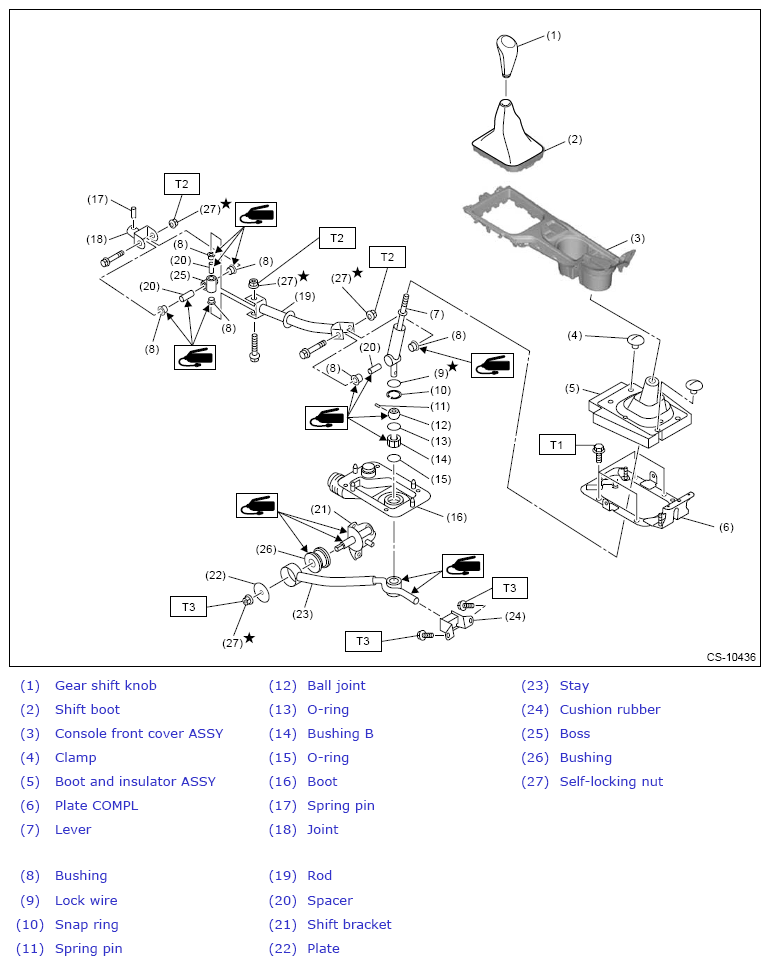

Fig 1: 5MT Gear Shift Lever Components
G13935507Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3 (0.3, 2.2)

T2: 12 (1.2, 8.9)

T3: 18 (1.8, 13.3)
