Operating Cylinder: Installation

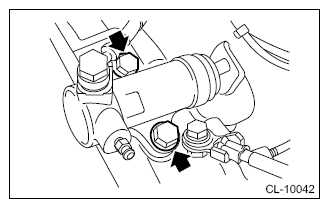

Install the operating cylinder.
NOTE: Before installing, apply grease to the contact point of the release lever and operating cylinder.

Grease

NICHIMOLY N-130 or equivalent

Tightening torque:

37 N.m (3.8 kgf-m, 27.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

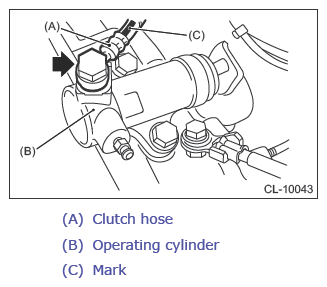

Replace the gasket with a new part, and install the clutch hose.
CAUTION:
- Be sure to install with the mark side facing upward.
- Do not twist the parts during installation.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
After bleeding air from the operating cylinder, ensure that the clutch operates properly. Ref. to CLUTCH SYSTEM>CLUTCH FLUID AIR BLEEDING>PROCEDURE .
Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE BOOT>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
