Crankshaft Position Sensor: Removal

  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the clip from the air intake boot, and loosen the clamp.
    G13230667Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G13230668Courtesy of SUBARU OF AMERICA, INC.

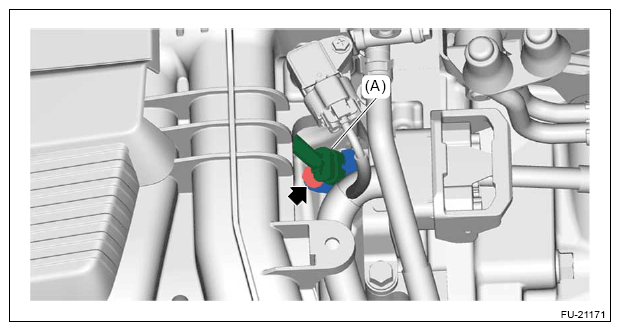

  4. Disconnect the connector (A) and remove the crankshaft position sensor.
G13230918Courtesy of SUBARU OF AMERICA, INC.
