Draining Fuel Partially

WARNING: Place "NO OPEN FLAMES" signs near the working area.

CAUTION:

Be careful not to spill fuel.
Fuel may remain in the fuel filler pipe. Drain the fuel from the fuel filler pipe through the fill opening using the gasoline proof pump and the gasoline proof hose before the operation.

Set the vehicle on a lift.
Open the fuel filler lid and remove the fuel filler cap.
Drain the fuel from the fuel filler pipe using the gasoline proof pump and the gasoline proof hose.
CAUTION:
- Be careful not to spill fuel.
- Always collect fuel using a dedicated fuel container.
1. Mark the location of the specified value of the gasoline proof hose.
  Specified value (hose insertion length):

  900 mm (35.43 in)
2. Insert the gasoline proof hose through the fill opening to the marked location.
  CAUTION: When inserting the hose into the fuel tank, the check valve may get damaged due to the hose being caught in the check valve while being pulled out. Thus, be careful not to insert the hose more than the specified value.
3. Drain the fuel from the fuel filler pipe using the gasoline proof pump.
Install the filler cap, and close the fuel lid.
Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
Lift up the vehicle.

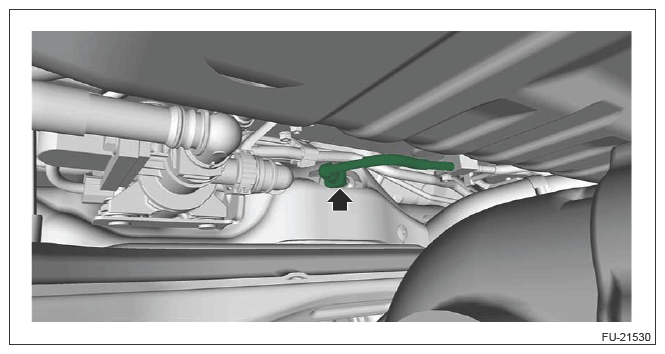

Set a container under the vehicle, and disconnect the circulate tube from the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO(HEV))>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE F) .
CAUTION:
- Be careful not to spill fuel.
- Catch the fuel from fuel filler pipe and circulate tube using a container or cloth.
Courtesy of SUBARU OF AMERICA, INC.

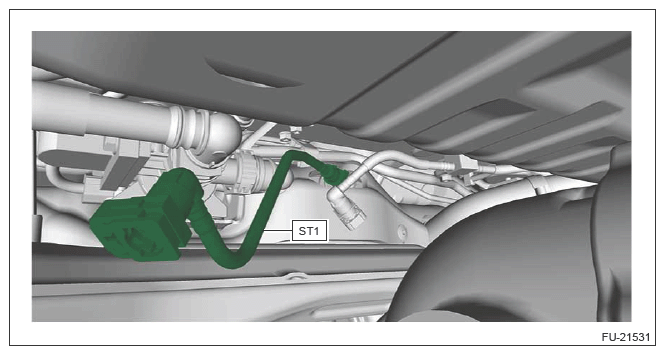

Connect the ST1 to the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO(HEV))>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE F) .
NOTE: ST1 is a SUBARU genuine part.

Preparation tool:

ST1: Circulate tube (42074XC05A)

Courtesy of SUBARU OF AMERICA, INC.

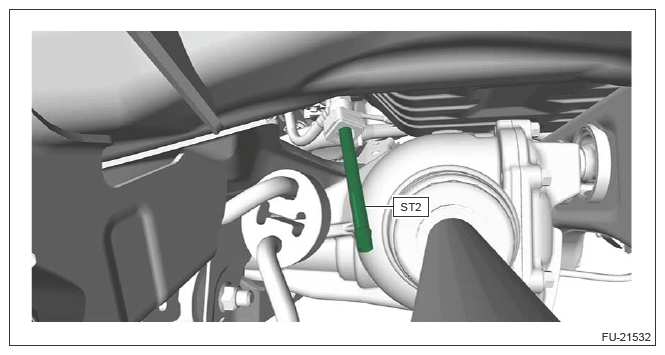

Connect ST2 to the circulate tube. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO(HEV))>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE F) .
Preparation tool:

ST2: FUEL PIPE ADAPTER (18471AA000)

Courtesy of SUBARU OF AMERICA, INC.
Connect the hose of gasoline proof pump to the ST2.
ST2:

FUEL PIPE ADAPTER (18471AA000)

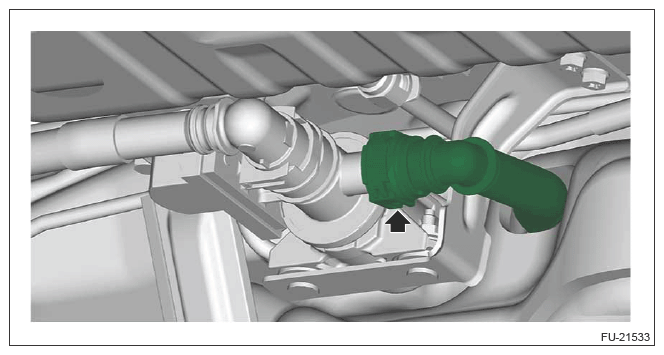

Disconnect the vent tube. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO(HEV))>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE H) .
NOTE: This operation is required to release the inner pressure of the fuel tank.

Courtesy of SUBARU OF AMERICA, INC.
Drain fuel.
CAUTION:
- Be careful not to spill fuel.
- Always collect fuel using a dedicated fuel container.
Install the related parts in the reverse order after draining the fuel.

NOTE:

For information about connecting the quick connector on the circulate tube, refer to "Fuel Delivery and Evaporation Lines". Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO(HEV))>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE F) .
For information about connecting the quick connector on the vent tube, refer to "Fuel Delivery and Evaporation Lines". Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO(HEV))>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE H) .
