Home >> Subaru >> 2021 >> Crosstrek Hybrid >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection System (HEV) >> Knock Sensor >> Removal >> RH Side

RH Side

  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the clip from the air intake boot, and loosen the clamp.
    G13230667Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G13230668Courtesy of SUBARU OF AMERICA, INC.

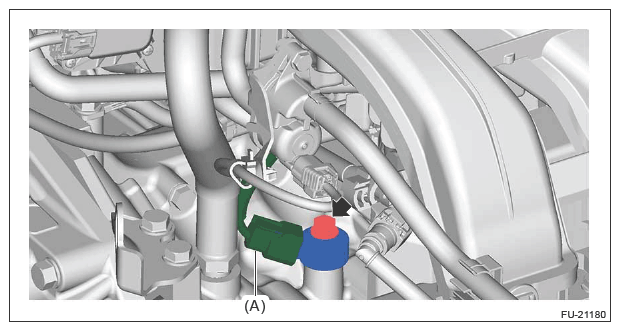

  4. Disconnect the connector (A) and remove the knock sensor.
G13230932Courtesy of SUBARU OF AMERICA, INC.
