Rear Toe-In

When adjusting, adjust it to the following value.

Toe-in: Adjustment value

3±2 mm (0.12±0.08 in)

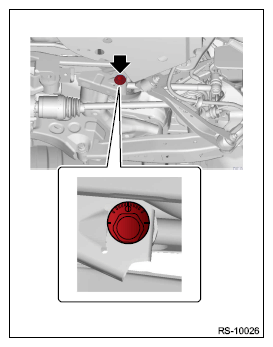

1. Loosen the nut while holding the bolt side of rear lateral link (front).

   Courtesy of SUBARU OF AMERICA, INC.

2. Turn the adjusting bolt until toe-in is within the specification.
   NOTE: When the left and right wheels are adjusted for toe-in at the same time, the movement of one scale graduation changes toe-in by approx. 6 mm (0.24 in).

   To increase toe-in.
   Rotate the left side clockwise.	Rotate the right side counterclockwise.
   Courtesy of SUBARU OF AMERICA, INC.	Courtesy of SUBARU OF AMERICA, INC.

   To decrease toe-in.
   Rotate the left side counterclockwise.	Rotate the right side clockwise.
   Courtesy of SUBARU OF AMERICA, INC.	Courtesy of SUBARU OF AMERICA, INC.

3. Tighten a new nut.

Tightening torque:

Impreza model: 120 N.m (12.2 kgf-m, 88.5 ft-lb)

Crosstrek model: 100 N.m (10.2 kgf-m, 73.8 ft-lb)
