Backup Battery

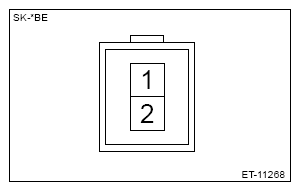

Measure the voltage between connector terminals.

Preparation tool:

Circuit tester

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Standard
1 (+) - 2 (-)	2 V or more

Replace the backup battery if the inspection result is not within the standard value.
