Memory Height Switch: Removal

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  3. Remove the memory height switch.

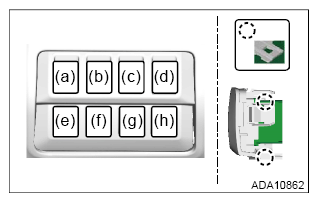

    1. Release the claws and remove the memory height switch (c).
    G12401637Courtesy of SUBARU OF AMERICA, INC.
