Power Window Control Switch: Removal: Sub-Switch
SWITCH POWER WINDOW SUB FRONT
For removal of the switch power window sub front on the passenger's seat, refer to the removal procedure of the switch power window main. Ref. to GLASS/WINDOWS/MIRRORS>POWER WINDOW CONTROL SWITCH>REMOVAL>MAIN SWITCH .
SWITCH POWER WINDOW SUB REAR
- Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
- Remove the trim panel rear door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>REAR DOOR .

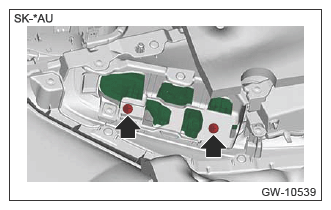

- Remove the screws and remove the switch power window sub rear.
