Battery Cable Assembly

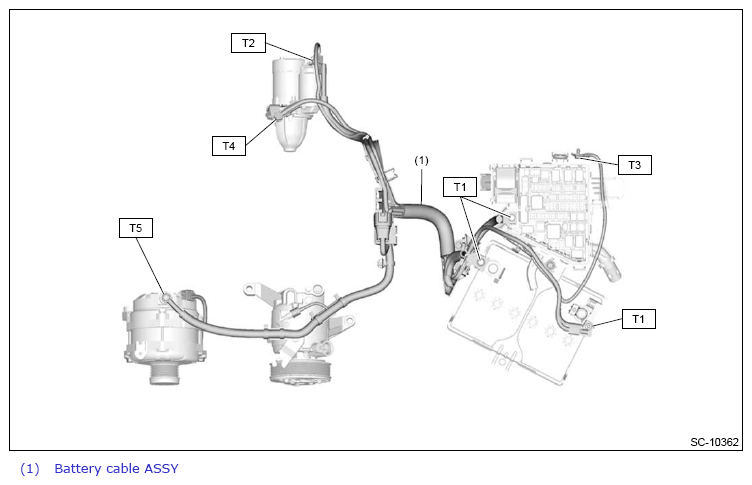

Fig 1: Battery Cable Assembly
G13868416Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 11 (1.1, 8.1)

T3: 13 (1.3, 9.6)

T4: 14 (1.4, 10.3)

T5: 15.5 (1.6, 11.4)
