Components With Torque Specifications: Starter

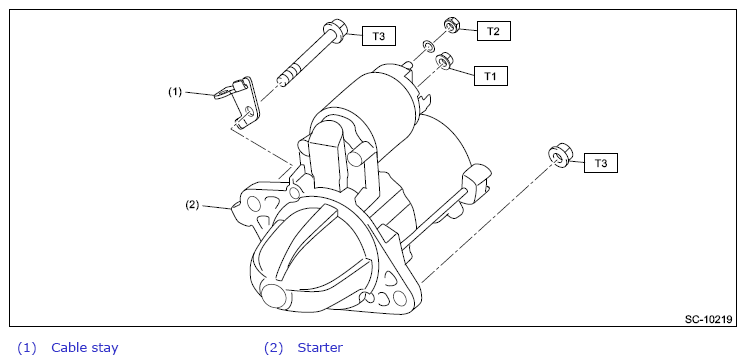

Fig 1: Starter Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 10 (1.0, 7.4)

T2: 11 (1.1, 8.1)

T3: 50 (5.1, 36.9)
