Multi-function Display (MFD): Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the grille ventilation assembly center. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE .
  3. Remove the panel center UPR, and remove the audio assembly or navigation assembly. Ref. to ENTERTAINMENT AND MONITORING>AUDIO>REMOVAL .

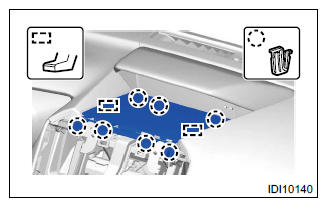

  4. Release the clip and hook, and then remove the cover center UPR.
    G11246168Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Lightly push up the back of the cover center UPR, hook the finger to the end portion and pull it toward you to remove it.
  5. Remove the multi-function display.
    CAUTION: Be careful not to damage the multi-function display or instrument panel.

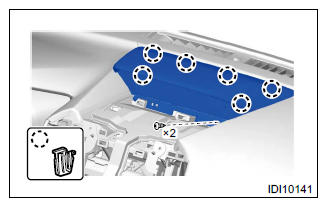

    1. Remove the screws and release the clip.
    2. Pull the multi-function display assembly toward yourself, and disconnect the connector.
      • Model without driver monitoring system
        G11246169Courtesy of SUBARU OF AMERICA, INC.

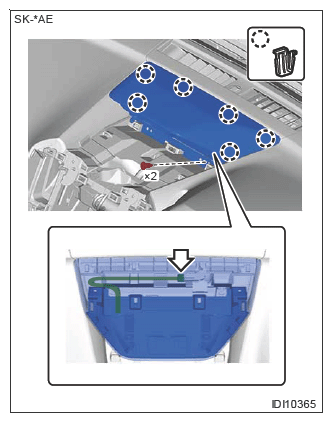

      • Model with driver monitoring system
      CAUTION: Do not disconnect the connector on the driver monitoring unit side.
      Disconnect the connector at arrow mark position.
      G13226694Courtesy of SUBARU OF AMERICA, INC.

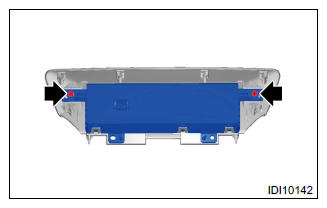

    3. Remove the screws and then remove the multi-function display.
    G11246170Courtesy of SUBARU OF AMERICA, INC.
