Diagnostic Procedure For Subaru Select Monitor Communication: Inspection
Trouble symptom:
Cannot communicate with [Multi-Function Display].
Detecting condition:
- Defective harness connector
- Power supply circuit malfunction
- Defective MFD
- Defective CAN communication circuit
- Defective Subaru Select Monitor

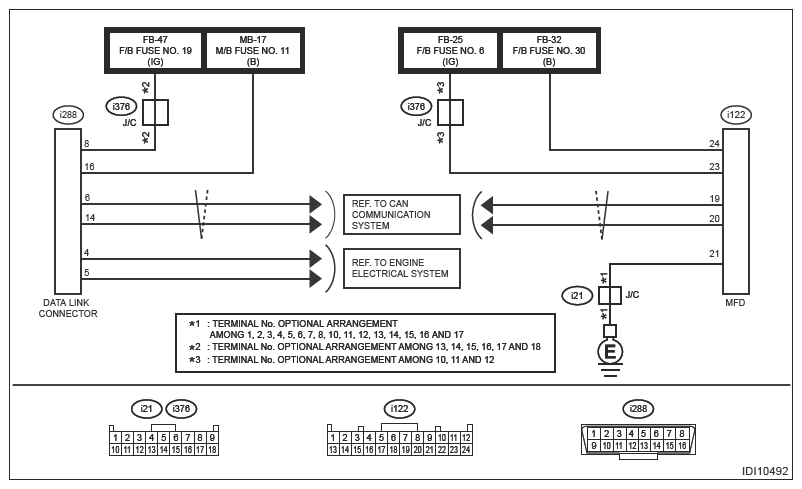

Wiring diagram:
- Multi-function display (MFD) system Ref. to WIRING SYSTEM>MULTI-FUNCTION DISPLAY (MFD) SYSTEM>WIRING DIAGRAM .
- CAN communication system Ref. to WIRING SYSTEM>CAN COMMUNICATION SYSTEM>WIRING DIAGRAM .
- CHECK IGNITION SWITCH
.
Check the ignition switch.
Is the ignition switch ON?
Yes : Go to 2 .
No : Turn the ignition switch to ON, and select the [Multi-Function Display] using the Subaru Select Monitor.
- CHECK BATTERY
.
- Turn the ignition switch to OFF.
- Check the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>BATTERY>INSPECTION .
Is the check result OK?
Yes : Go to 3 .
No : Charge or replace the battery.
- CHECK INSTALLATION OF MFD CONNECTOR
.
Check the MFD connector.
Is the MFD connector inserted into the MFD until it locks?
Yes : Go to 4 .
No : Be sure to insert the MFD connector into the MFD until it is locked.
- CHECK LAN SYSTEM
.
Perform the diagnosis for LAN system. Ref. to LAN SYSTEM (DIAGNOSTICS)>BASIC DIAGNOSTIC PROCEDURE .
Is there any fault in LAN system?
Yes : Perform the inspection according to the diagnosis for LAN system.
No : Go to 5 .
- CHECK SUBARU SELECT MONITOR COMMUNICATION
.
- Turn the ignition switch to ON.
- Check whether communication to MFD can be executed normally.
Is communication with [Multi-function Display] possible?
Yes : Read the DTC of [Multi-Function Display] using the Subaru Select Monitor. Ref. to MULTI-FUNCTION DISPLAY (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .
No : Go to 6 .
- CHECK SUBARU SELECT MONITOR
.
Connect the Subaru Select Monitor to another vehicle to verify that the communication for initializing can be executed normally.
Is communication for initializing possible?
Yes : Go to 7 .
No : Repair or replace the Subaru Select Monitor.
- CHECK MFD POWER SUPPLY CIRCUIT (OPEN OR SHORT CIRCUIT)
.
- Turn the ignition switch to OFF.
- Disconnect the MFD connector.
- Turn the ignition switch to ON.
- Using a tester, measure the voltage between the MFD connector and chassis ground.
Connector and terminal
(i122) No. 23 (+) - Chassis ground (-):
(i122) No. 24 (+) - Chassis ground (-):
Is the voltage 10 - 16 V?
Yes : Go to 8 .
No : Repair the open or short circuit of harness, or poor contact of connector.
- CHECK MFD GROUND CIRCUIT (OPEN)
.
- Turn the ignition switch to OFF.
- Measure the resistance between MFD connector and chassis ground.
Connector and terminal
(i122) No. 21 - Chassis ground:
Is the resistance less than 10 Ω?
Yes : Go to 9 .
No : Repair the open circuit of the MFD ground circuit or poor contact of connector.
- CHECK POOR CONTACT OF CONNECTOR
.
Check MFD power supply, ground circuit and data link connector for poor contact.
Is there poor contact?
Yes : Repair the poor contact.
No : Replace the MFD. Ref. to INSTRUMENTATION/DRIVER INFO>MULTI-FUNCTION DISPLAY (MFD) .
