Radiator Fan Relay: Inspection
- Check that there is no deformation, cracks or other damages.

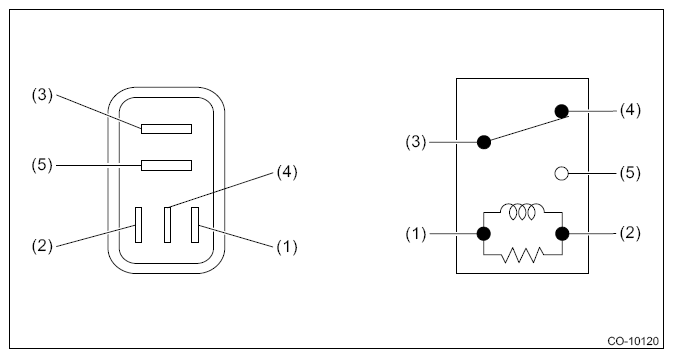

- Check the resistance between terminals.
- Main fan relay 1
| Terminal No. | INSPECTION conditions | Standard |
|---|---|---|
| 3 - 4 | Always | 1 MΩ or more |
| 3 - 4 | Apply battery voltage between terminals 1 and 2. | Less than 1 Ω |
- Main fan relay 2
| Terminal No. | INSPECTION conditions | Standard |
|---|---|---|
| 3 - 4 | Always | Less than 1 Ω |
| 3 - 5 | Always | 1 MΩ or more |
| 3 - 4 | Apply battery voltage between terminals 1 and 2. | 1 MΩ or more |
| 3 - 5 | Apply battery voltage between terminals 1 and 2. | Less than 1 Ω |
- Sub fan relay
| Terminal No. | INSPECTION conditions | Standard |
|---|---|---|
| 3 - 4 | Always | 1 MΩ or more |
| 3 - 4 | Apply battery voltage between terminals 1 and 2. | Less than 1 Ω |
