Home >> Subaru >> 2021 >> Forester Base >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Intake System (Induction) >> Air Cleaner Element >> Removal

Air Cleaner Element: Removal

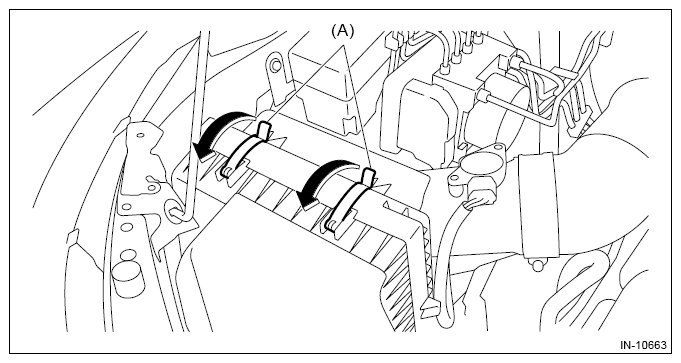

  1. Release the clip (A) lock.
    G13867750Courtesy of SUBARU OF AMERICA, INC.

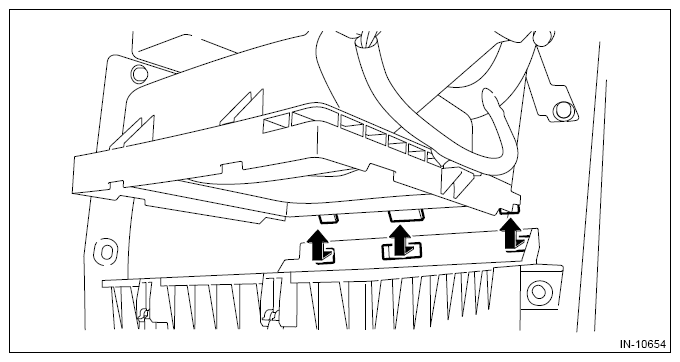

  2. Lift the air cleaner case (rear), and disengage the claws of the air cleaner case (rear) from the holes on the air cleaner case (front).
    G13600522Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air cleaner element while pulling the air cleaner case (rear) as shown in the figure.
G13600523Courtesy of SUBARU OF AMERICA, INC.
