Air Intake Boot: Removal

  1. Remove the collector cover. Ref. to INTAKE (INDUCTION) (H4DO)>Collector Cover>REMOVAL .
  2. Remove the clips, and loosen the clamps.
    G13223823Courtesy of SUBARU OF AMERICA, INC.

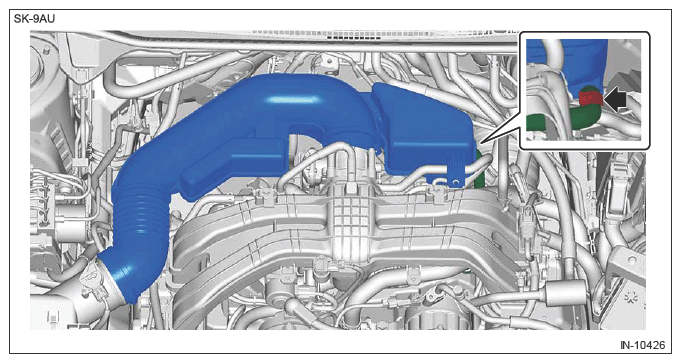

  3. Disconnect the PCV hose and remove the air intake boot.
G13224201Courtesy of SUBARU OF AMERICA, INC.
