Cylinder Head

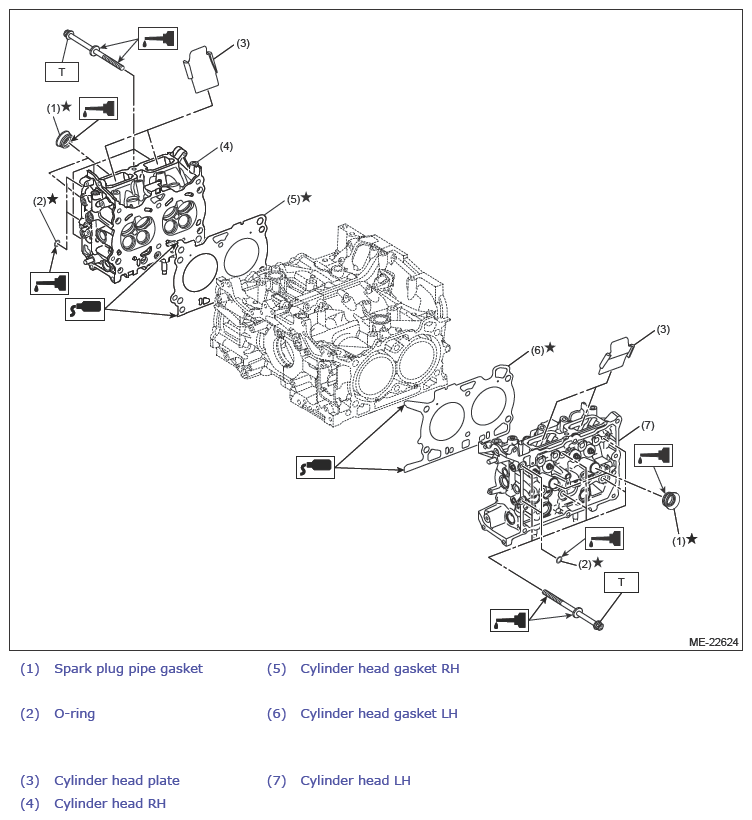

Fig 1: Exploded View Of Cylinder Head Components

G13867769

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: Ref. to MECHANICAL (H4DO)>CYLINDER HEAD>INSTALLATION .
