Engine Mechanical System: V-Belt: Inspection

  1. Check the V-belt for cracks, tear or wear.
  2. Check the V-belt tensioner assembly for deformation, cracks and any other damage.

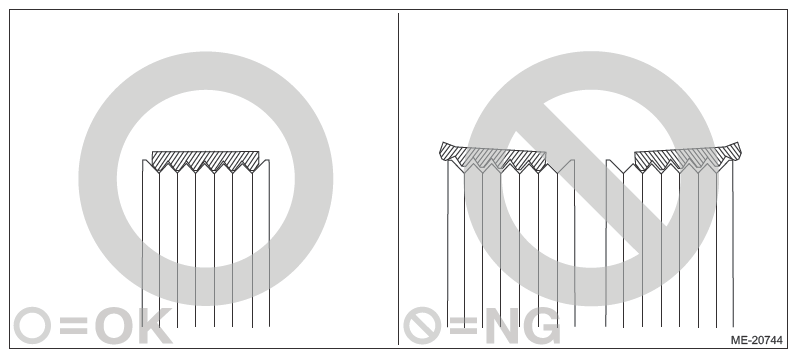

  3. Check that the V-belt ribs are securely placed on the rib grooves for each pulley.
    G11253216Courtesy of SUBARU OF AMERICA, INC.

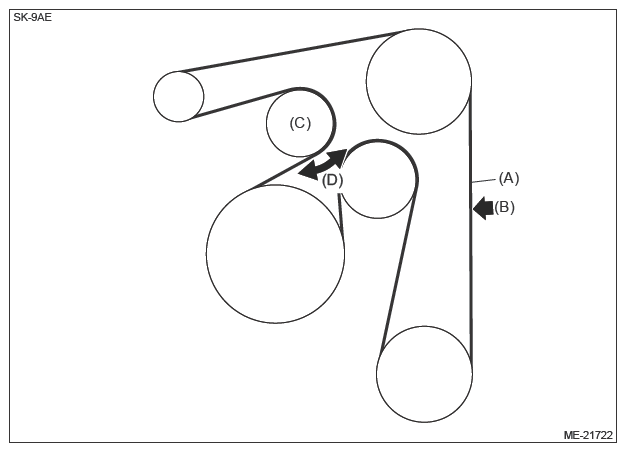

  4. Check that the V-belt tensioner assembly (C) moves in the direction of arrow (D), when the V-belt (A) is pushed and released by the area indicated by the arrow (B).
    G13224322Courtesy of SUBARU OF AMERICA, INC.
  5. Start the engine and confirm that the V-belt rotates smoothly and no abnormal noise is emitted.
