Handling Precautions For Silicone-Containing Spray

When silicone contained in the lubricant, rust inhibitor or glazing agent adheres to the electrical contact of the relay or switch, non-conducting silica dioxide (SiO2) film will be formed, which may lead to poor continuity. Therefore, the following precautions must be observed when using the silicone-containing spray.

• Never spray directly to the electrical equipment.

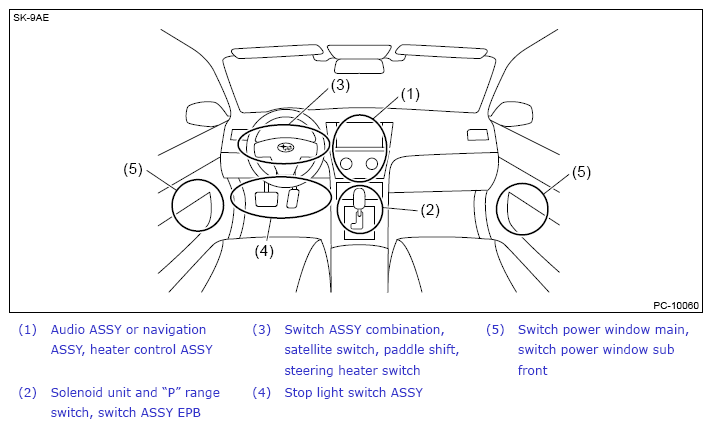

• When using the spray close to the electrical equipment, always put the cover on it. Be sure to put the cover on the electrical equipment especially when using the spray to the locations shown in the figure below and their surrounding areas.

Courtesy of SUBARU OF AMERICA, INC.

• If the residual silicone remains in the vicinity of the electrical equipment after the spray has been used, the vaporized silicone stands around the electrical equipment and it may adhere to electrical contact. After using the spray, be sure to wipe the silicone off with a cloth.
• Even when using the spray to the place away from the electrical equipment, the droplet of the spray may be splashed to the periphery. Use as small amount of spray as possible, and take care not to splash the silicone to the periphery.
