Rear Seat Belt

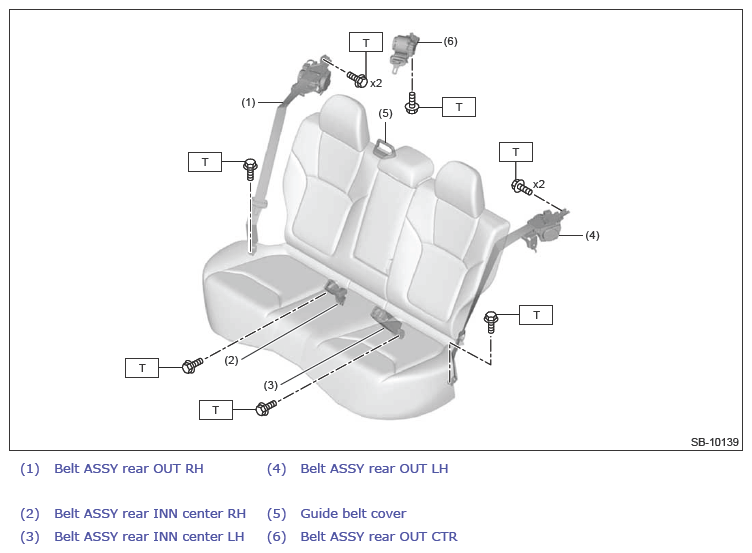

Fig 1: Rear Seat Belt Components

G13869903

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 30 (3.1, 22.1)
