Front Camber

  1. Adjust the camber angle to the following value.
    Camber (difference between RH and LH 35' or less)
    -0°05' ±0°30'
  2. Loosen the nut side, while holding the strut assembly bolt side. (2 places at upper and lower)
  3. Turn the camber adjusting bolt so that the camber is set at specification.
    NOTE: Moving the adjusting bolt by one scale changes the camber by approximately 0°10' .

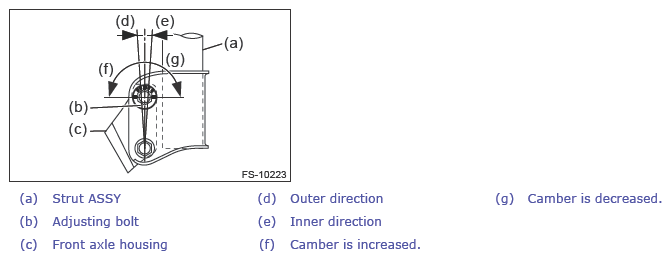

    G13868500Courtesy of SUBARU OF AMERICA, INC.
    To increase camber.
    Rotate the left side counterclockwise. Rotate the right side clockwise.
    G06654859Courtesy of SUBARU OF AMERICA, INC.
    G06654860Courtesy of SUBARU OF AMERICA, INC.
    To decrease camber.
    Rotate the left side clockwise. Rotate the right side counterclockwise.
    G06654860Courtesy of SUBARU OF AMERICA, INC.
    G06654859Courtesy of SUBARU OF AMERICA, INC.
  4. Tighten two new flange nuts.
    CAUTION: While holding the bolt side, tighten the nut to the specified torque.
    NOTE: First, tighten the adjusting bolt (upper side) to the specified torque.

    Tightening torque:

    155 N.m (15.8 kgf-m, 114.3 ft-lb)
