Home >> Subaru >> 2021 >> Forester Base >> Repair and Diagnosis >> Suspension >> Rear Suspension System >> Trailing Link >> Removal

Trailing Link: Removal

  1. Lift up the vehicle, and then remove the rear wheels.

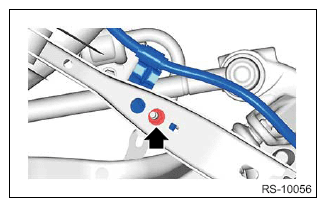

  2. Remove the nuts and remove the adapter cord EPB bracket.
    G13591359Courtesy of SUBARU OF AMERICA, INC.

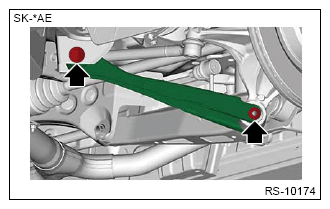

  3. Remove the bolts and nuts, and then remove the trailing link assembly rear.
    G13225009Courtesy of SUBARU OF AMERICA, INC.
