Ball Joint: Removal

  1. Lift up the vehicle, and then remove the front wheels.
  2. Remove the ball joint COMPL.
    CAUTION: Be careful not to damage the boot of the ball joint.

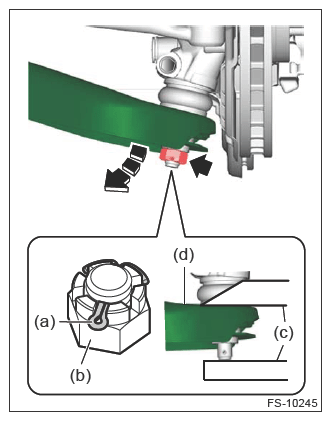

    1. Remove the cotter pin (a).
    2. Remove the castle nut (b).
    3. Use a ball joint puller (c) to detach the arm COMPL front (d).

      Preparation tool:

      Ball joint puller

      G13199319Courtesy of SUBARU OF AMERICA, INC.

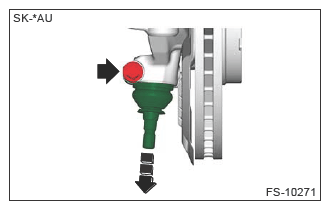

    4. Remove the bolt and pull out the ball joint COMPL.
      G13224960Courtesy of SUBARU OF AMERICA, INC.
