Electric Fluid Pump: Disassembly

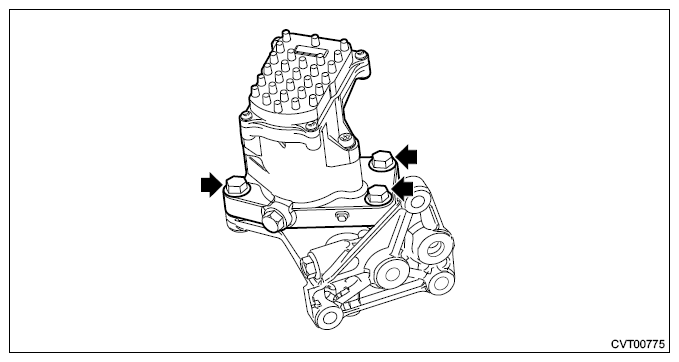

  1. Remove the electric oil pump.
    G13225751Courtesy of SUBARU OF AMERICA, INC.

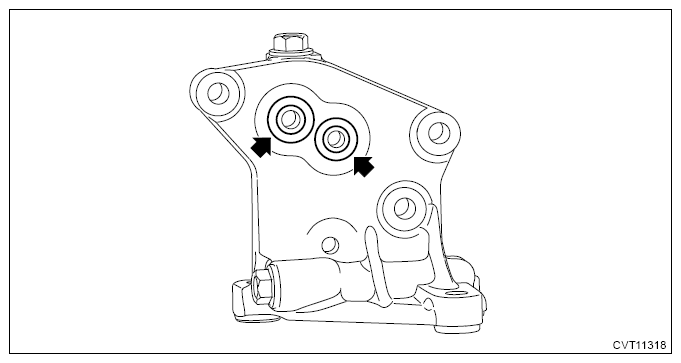

  2. Remove the O-rings.
    G13225752Courtesy of SUBARU OF AMERICA, INC.

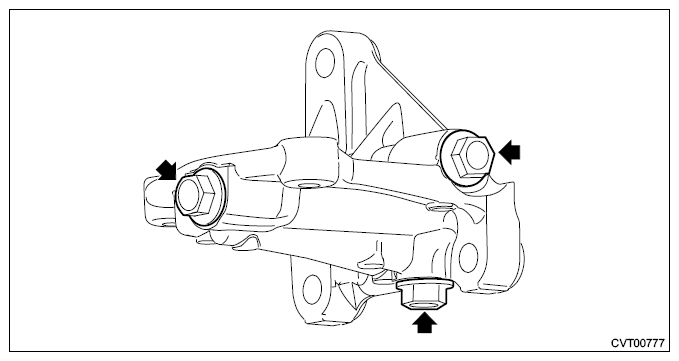

  3. Remove the plug.
    G13225753Courtesy of SUBARU OF AMERICA, INC.
