Differential Side Retainer

  1. Remove the O-rings.
    G08318144Courtesy of SUBARU OF AMERICA, INC.

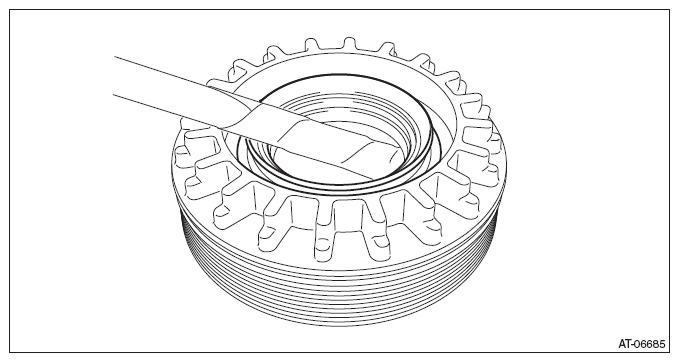

  2. Remove the differential side retainer oil seal.
    G08318145Courtesy of SUBARU OF AMERICA, INC.
